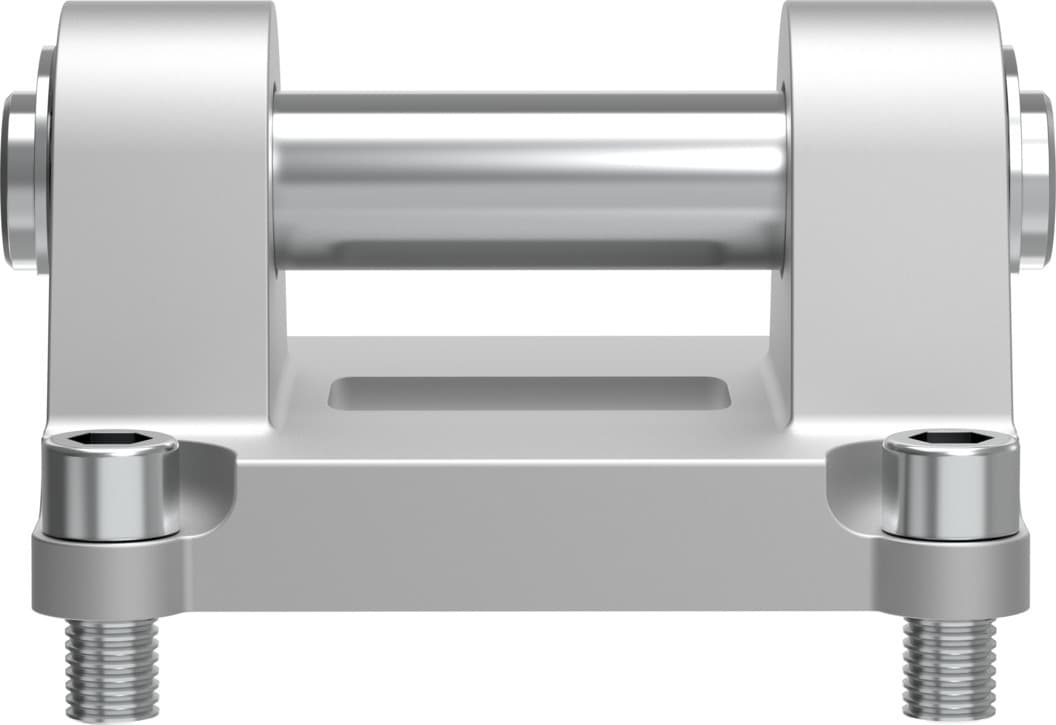

sncb-125-r3
Product ID:5452
Updated: 2026/4/4
Key Features
- 1Ensure durability in harsh environments with high corrosion protection variants. 2、Guarantee compatibility and reliability via ISO 15552 standard design. 3、Provide excellent protection against high corrosion stress with CRC3 class. 4、Suit various industrial needs using die-cast aluminum and stainless steel. 5、Handle ambient temperatures from -40°C to 90°C for versatile application.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 125 | Based on norm | ISO 15552 |
| Variants | High corrosion protection | Corrosion resistance class (CRC) | 3 - High corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Ambient temperature | -40°C 90°C | Product weight | 1776g |
| Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum With protective coating |
| Bolt material | High-alloy stainless steel | Material of bearing | Polymer |
| Disc material | Steel, galvanized | Material of screws | High-alloy stainless steel |
| Fuse material | Spring steel, galvanized | Manufacturer ID | 176950 |
Specifications may be subject to change without notice
