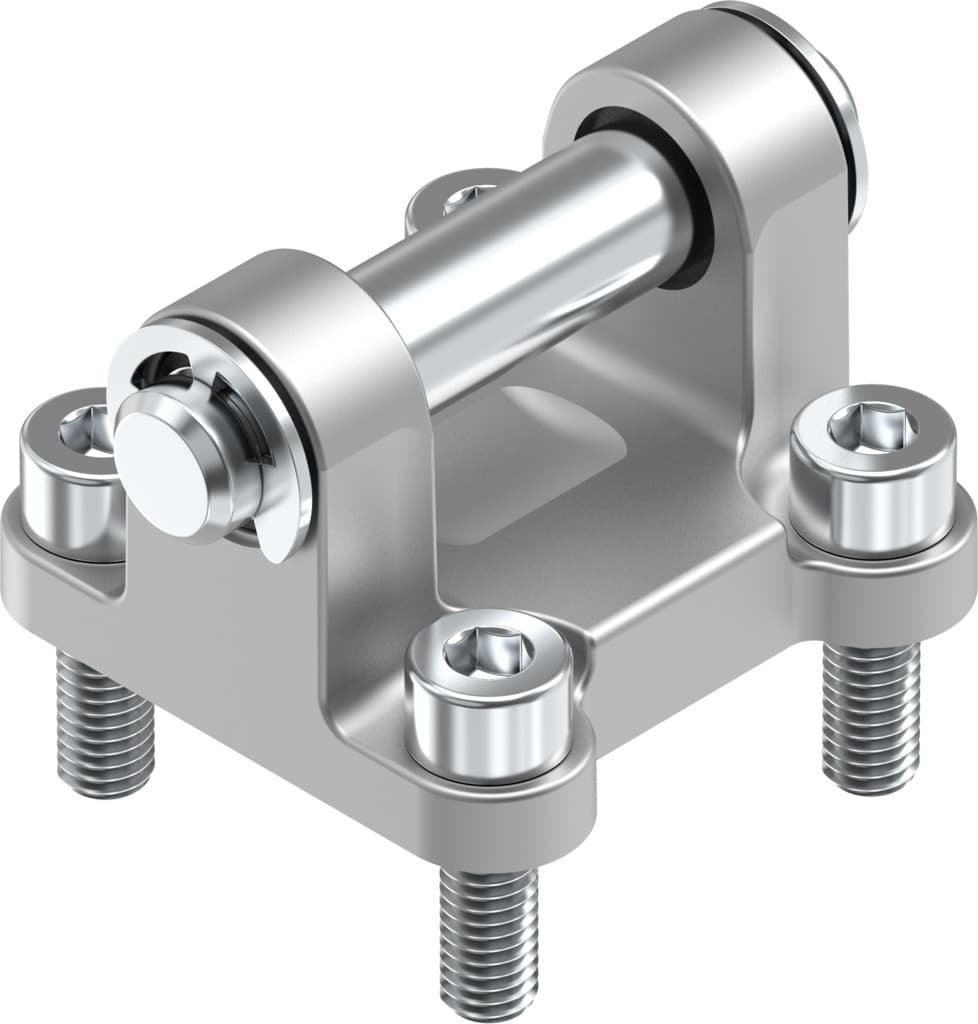

sncb-32-r3
Product ID:5451
Updated: 2026/4/4
Key Features
- 1Achieve CRC3 corrosion resistance for harsh environments. 2、Ensure ISO 15552 standard compliance and system compatibility. 3、Utilize in Li-ion battery production and pneumatic systems. 4、Construct with coated aluminum, stainless bolts, and galvanized steel. 5、Operate reliably from -40°C to 90°C ambient temperature.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Based on norm | ISO 15552 |
| Variants | High corrosion protection | Corrosion resistance class (CRC) | 3 - High corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Ambient temperature | -40°C 90°C | Product weight | 100g |
| Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum With protective coating |
| Bolt material | High-alloy stainless steel | Material of bearing | Polymer |
| Disc material | Steel, galvanized | Material of screws | High-alloy stainless steel |
| Fuse material | Spring steel, galvanized | Manufacturer ID | 176944 |
Specifications may be subject to change without notice
