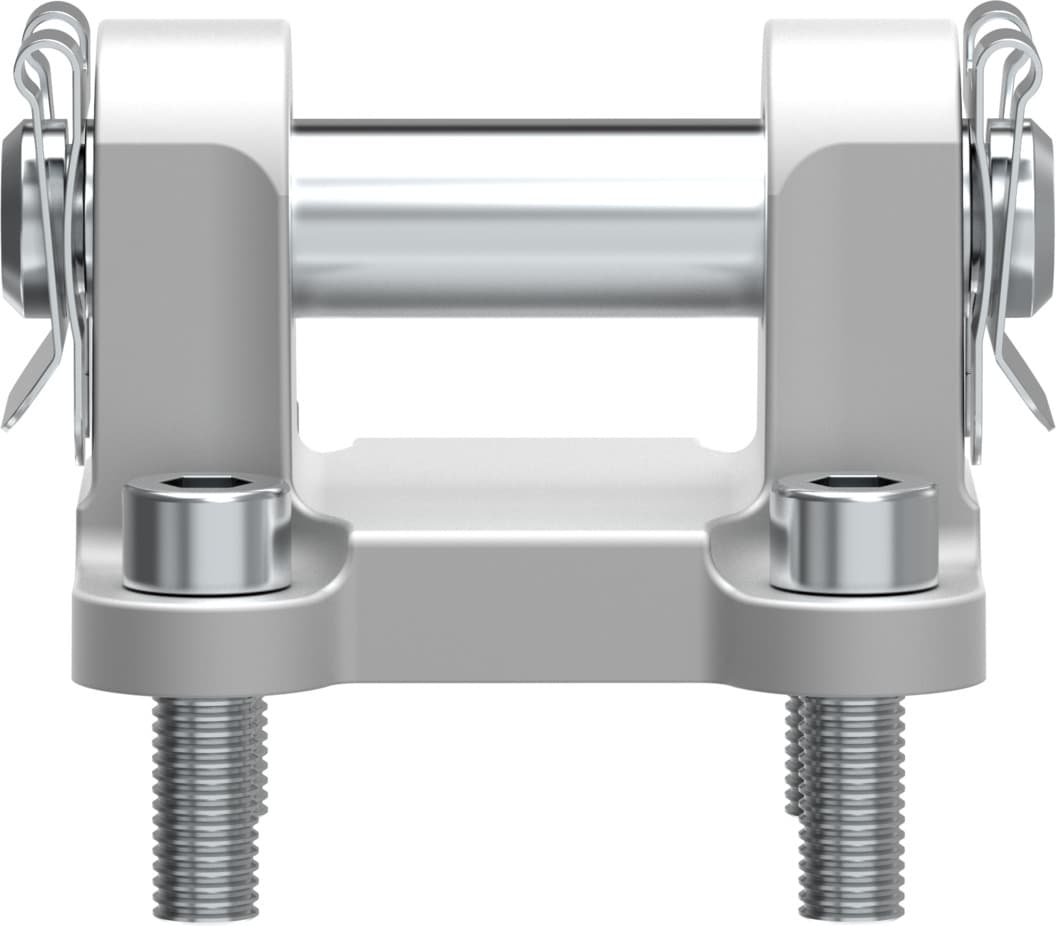

sncb-40
Product ID:5336
Updated: 2026/4/4
Key Features
- 1Meet ISO 15552 standards for broad pneumatic system compatibility. 2、Resist corrosion with a CRC Class 1 stress rating for harsh environments. 3、Operate reliably across a wide -40°C to +90°C temperature range. 4、Ensure durability with die-cast aluminum, steel, and polymer construction. 5、Comply with RoHS and LABS (PWIS) for environmental and safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Based on norm | ISO 15552 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper are excluded from use. Exception are printed circuit boards, cables, electrical connectors and coils | Ambient temperature | -40°C 90°C |
| Product weight | 155g | Note on materials | RoHS-compliant |
| Mounting material | Die-cast aluminum | Bolt material | Steel, galvanized |
| Material of bearing | Polymer | Disc material | Steel, galvanized |
| Material of screws | Steel, galvanized | Fuse material | Spring steel, galvanized |
| Manufacturer ID | 174391 |
Specifications may be subject to change without notice
