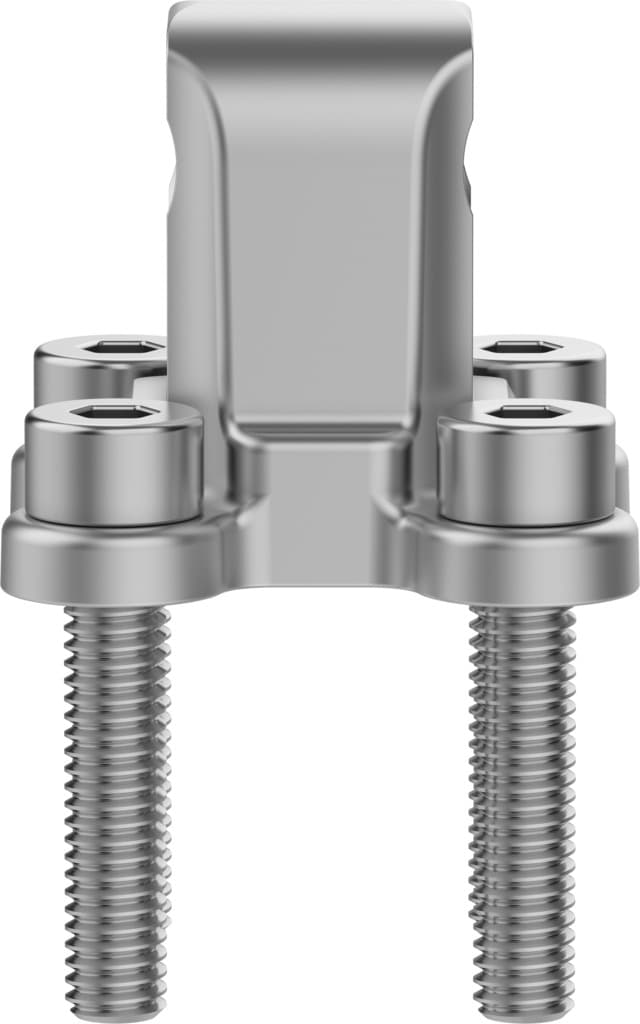

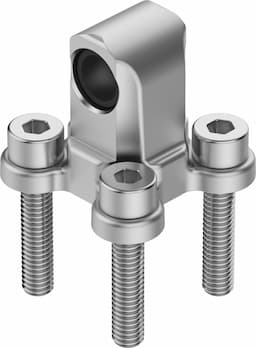

sncl-12-r3
Product ID:10324
Updated: 2026/4/5
Key Features
- 1Ensure excellent corrosion protection for durability in harsh environments. 2、Guarantee compatibility and reliability per ISO 21287 standard. 3、Operate effectively from -40°C to 90°C ambient temperature. 4、Use copper and PTFE-free, RoHS-compliant materials for safety. 5、Mount actuators securely to enhance system performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Based on norm | ISO 21287 |
| Variants | High corrosion protection | Corrosion resistance class (CRC) | 3 - High corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -40°C 90°C |
| Product weight | 20g | Note on materials | RoHS-compliant |
| Mounting material | Wrought aluminum alloy With protective coating | Material of bearing | Polymer |
| Material of screws | High-alloy stainless steel | Manufacturer ID | 537794 |
Specifications may be subject to change without notice
