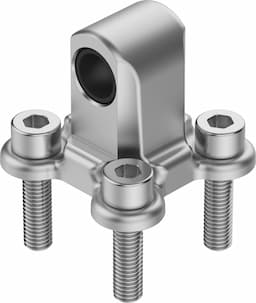

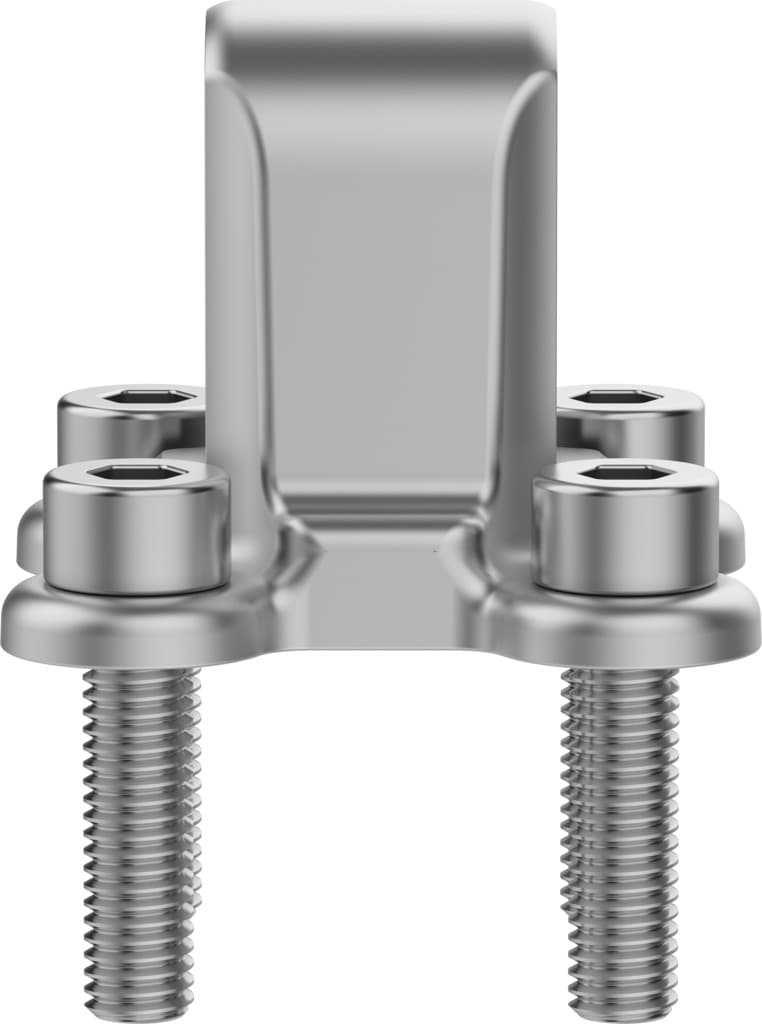

sncl-20
Product ID:10322
Updated: 2026/4/5
Key Features
- 1Meet ISO 21287 standards for broad pneumatic system compatibility. 2、Achieve moderate CRC 2 corrosion resistance for diverse applications. 3、Operate reliably from -40°C to 90°C ambient temperature. 4、Utilize durable wrought aluminum alloy and plastic construction. 5、Ensure compliance with RoHS EU directives on restricted substances.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 20 | Based on norm | ISO 21287 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 90°C | Product weight | 38g |
| Note on materials | RoHS-compliant | Mounting material | Wrought aluminum alloy |
| Material of bearing | Polymer | Material of screws | Steel Galvanized |
| Manufacturer ID | 537792 |
Specifications may be subject to change without notice
