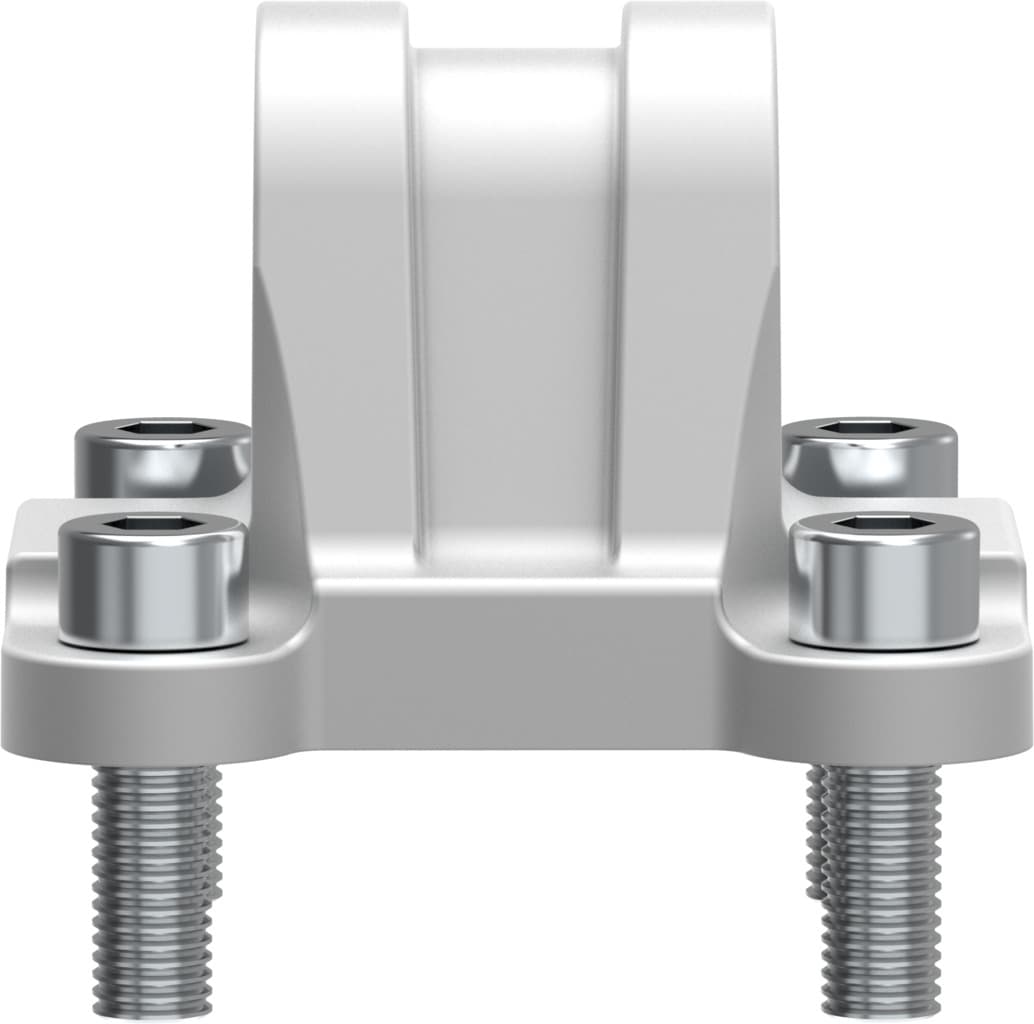

sncl-40
Product ID:5350
Updated: 2026/4/4
Key Features
- 1Secure precise connections for pneumatic cylinders. 2、Construct from high-quality die-cast aluminum. 3、Ensure compatibility with ISO 15552 standards. 4、Provide CRC1 corrosion resistance for durability. 5、Meet RoHS and SVHC-free compliance standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 90°C | Product weight | 95g |
| Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
| Material of bearing | Polymer | Material of screws | Steel Galvanized |
| Manufacturer ID | 174405 |
Specifications may be subject to change without notice
