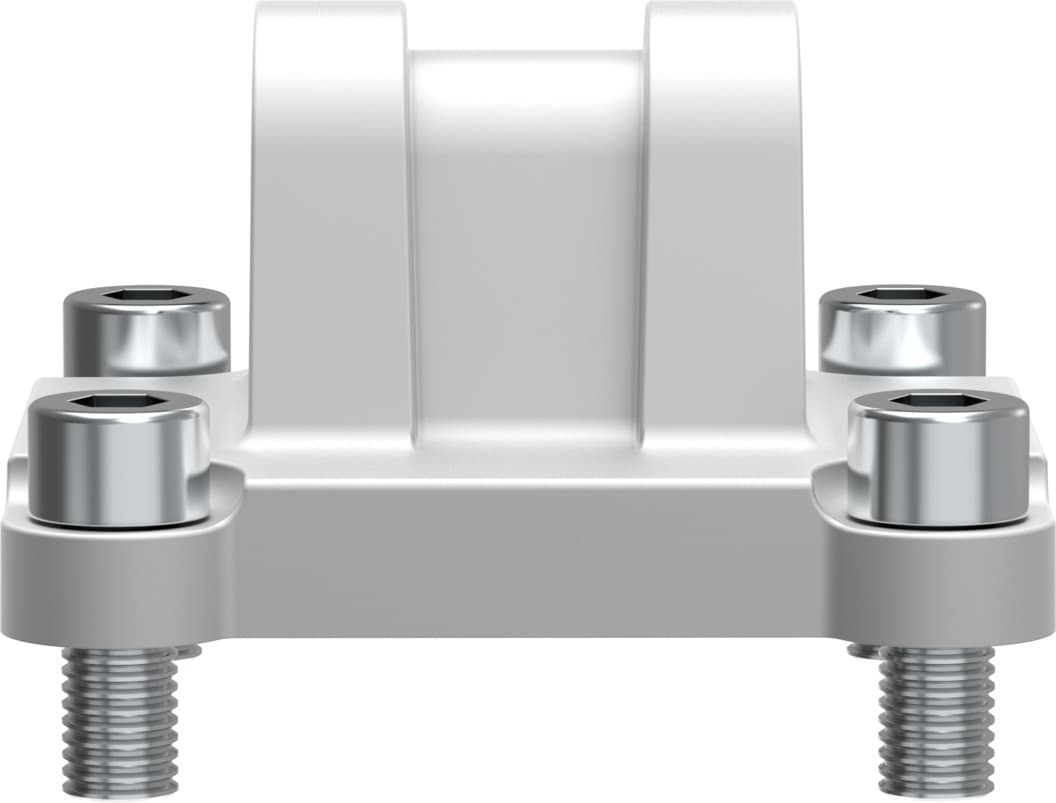

sncl-80
Product ID:5353
Updated: 2026/4/4
Key Features
- 1Ensure durability with corrosion-resistant materials and a low corrosion stress classification of 1. 2、Operate effectively in a broad ambient temperature range of -40 to 90°C. 3、Meet RoHS standards with a product free of copper and PTFE. 4、Gain strength and stability from aluminum die-cast mounting material. 5、Weighing 436 grams, it is designed for size 80 applications meeting ISO 15552.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 80 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 90°C | Product weight | 436g |
| Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
| Material of bearing | Polymer | Material of screws | Steel Galvanized |
| Manufacturer ID | 174408 |
Specifications may be subject to change without notice
