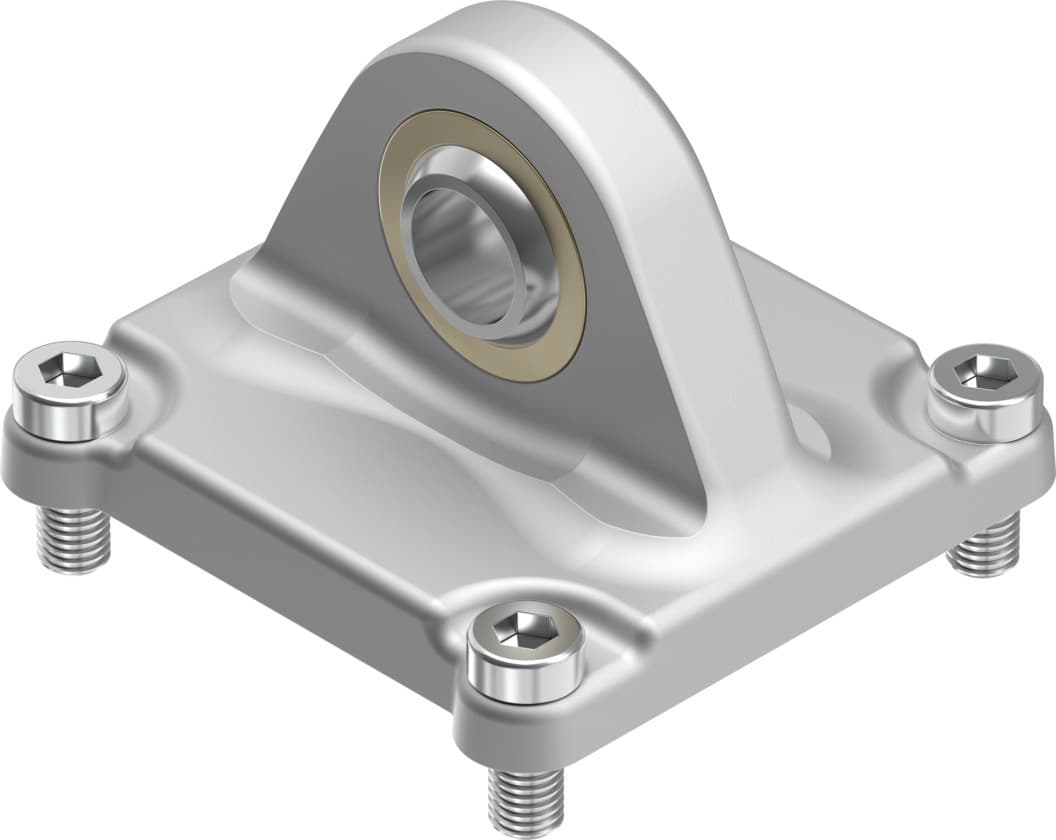

sncs-100
Product ID:5347
Updated: 2026/4/4
Key Features
- 1Engineer robust pneumatic systems with ISO-standard corrosion resistance. 2、Minimize leakage using advanced sealing technology for optimal performance. 3、Ensure long service life with high-strength, heavy-duty construction. 4、Simplify integration and maintenance via user-friendly quick-disconnect couplings. 5、Achieve consistent reliability across diverse industrial applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 100 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 150°C | Product weight | 683g |
| Note on materials | RoHS-compliant | Mounting material | Wrought aluminum alloy |
| Rod end bearing material | Steel PTFE | Material of screws | Steel Galvanized |
| Manufacturer ID | 174402 |
Specifications may be subject to change without notice
