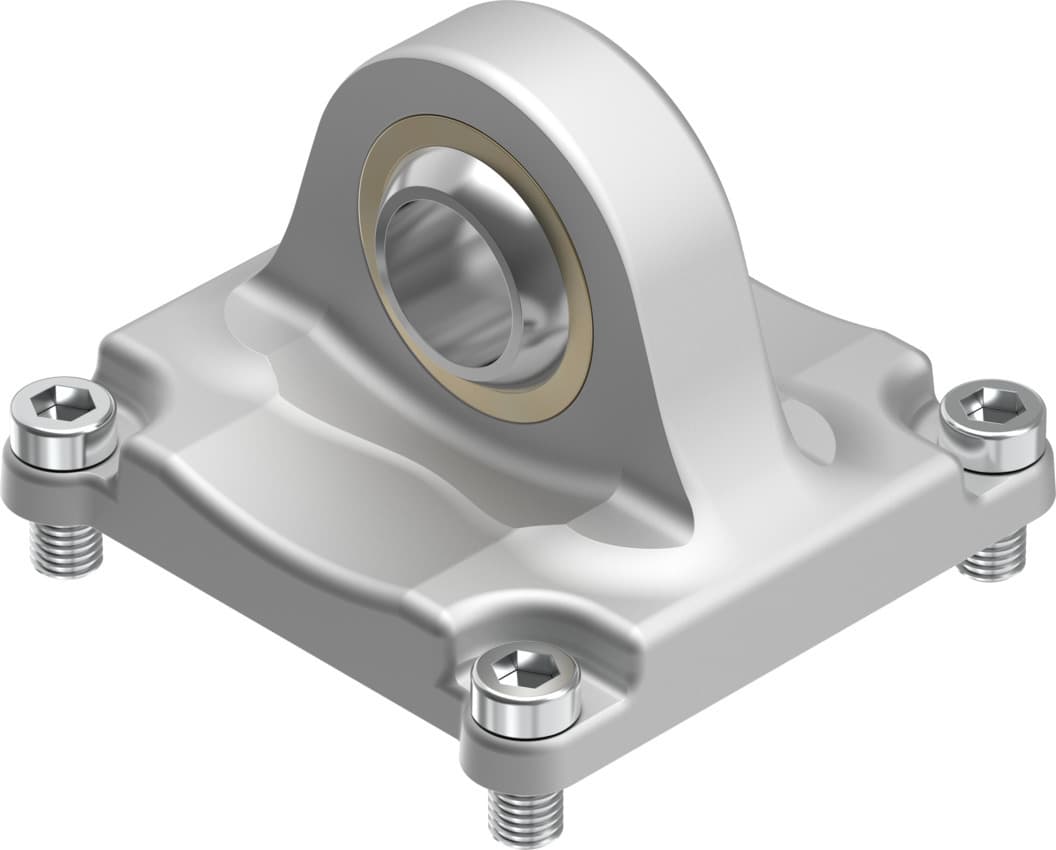

sncs-125
Product ID:5348
Updated: 2026/4/4
Key Features
- 1Meet ISO 15552 standards for broad pneumatic system compatibility. 2、Withstand ambient temperatures from -40 to 150 °C. 3、Resist moderate corrosion with a CRC 2 classification. 4、Construct from RoHS-compliant aluminum alloy and steel. 5、Handle easily with a product weight of 1,369 grams.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 125 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 150°C | Product weight | 1369g |
| Note on materials | RoHS-compliant | Mounting material | Wrought aluminum alloy |
| Rod end bearing material | Steel PTFE | Material of screws | Steel Galvanized |
| Manufacturer ID | 174403 |
Specifications may be subject to change without notice
