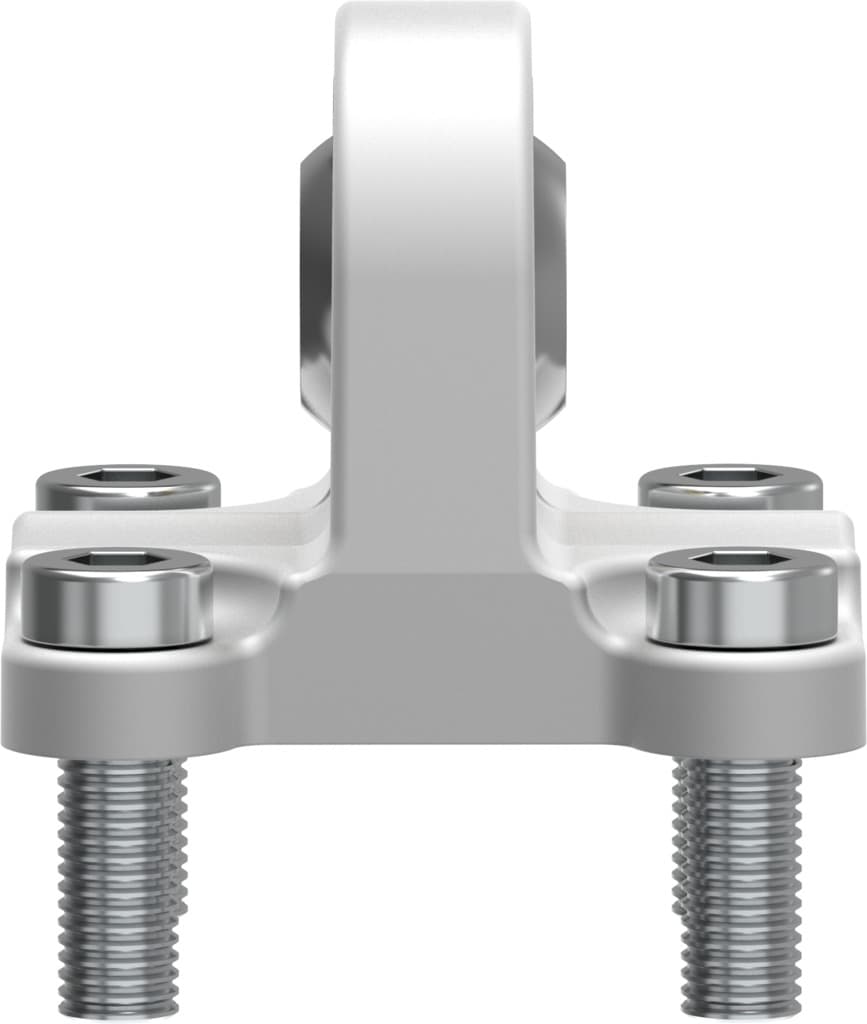

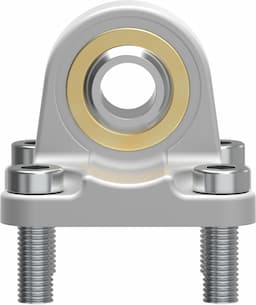

sncs-32
Product ID:5342
Updated: 2026/4/4
Key Features
- 1Construct the SNCS-32 flange from die-cast aluminum for high strength. 2、Operate across a wide -40°C to 150°C ambient temperature range. 3、Utilize galvanized steel screws for enhanced durability. 4、Ensure RoHS compliance for environmental regulations. 5、Integrate the compact 86g, size 32 part easily.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 150°C | Product weight | 86g |
| Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
| Rod end bearing material | Steel PTFE | Material of screws | Steel Galvanized |
| Manufacturer ID | 174397 |
Specifications may be subject to change without notice
