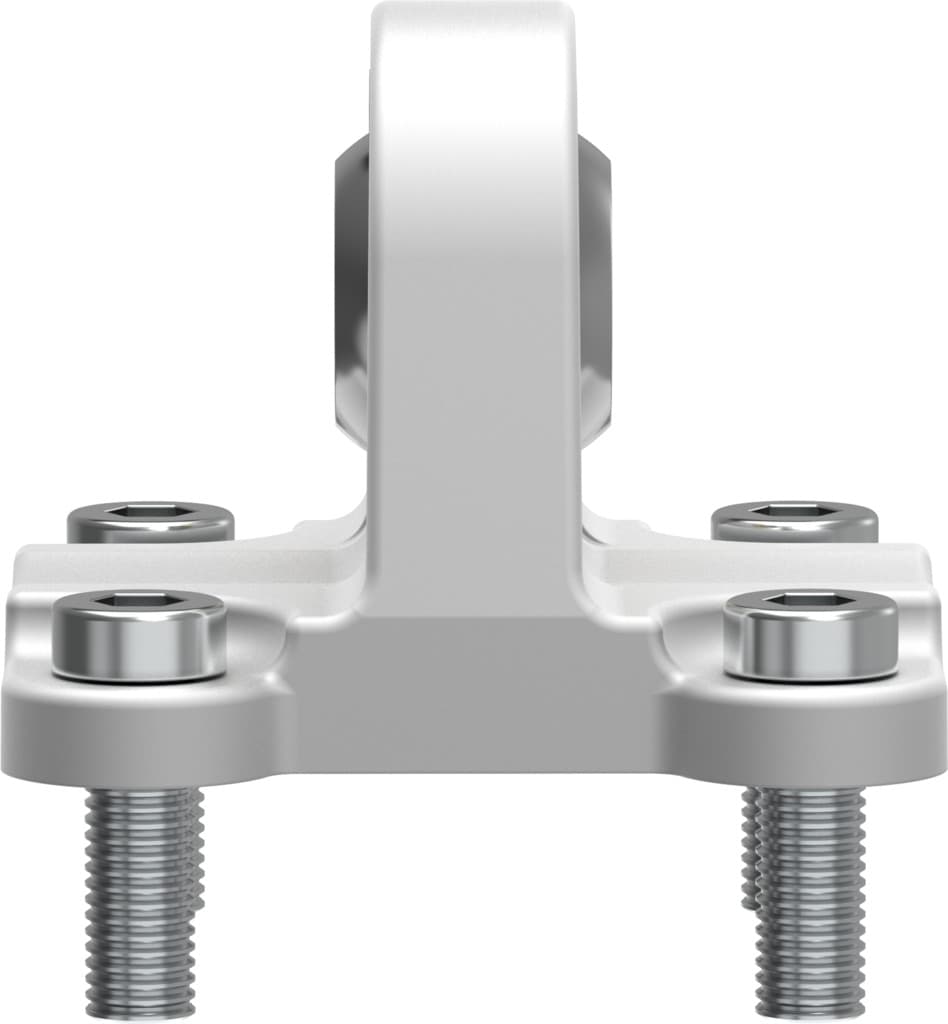

sncs-40
Product ID:5343
Updated: 2026/4/4
Key Features
- 1Secure 40mm bore pneumatic cylinders with precise mounting. 2、Construct from die-cast aluminum for superior corrosion resistance. 3、Operate reliably in temperatures from -40°C to 150°C. 4、Reduce handling weight with a robust 122-gram design. 5、Meet environmental standards with RoHS-compliant materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 150°C | Product weight | 122g |
| Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
| Rod end bearing material | Steel PTFE | Material of screws | Steel Galvanized |
| Manufacturer ID | 174398 |
Specifications may be subject to change without notice
