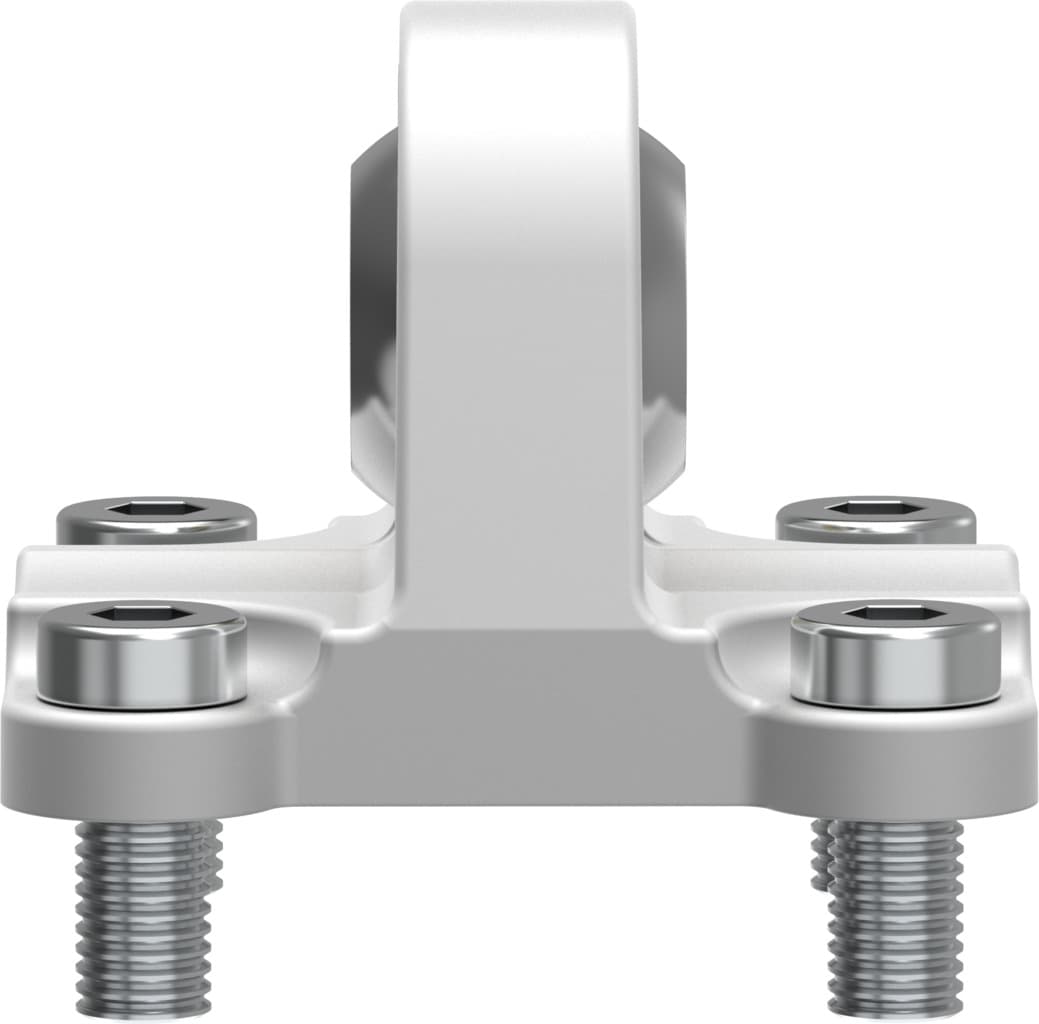

sncs-50
Product ID:5344
Updated: 2026/4/4
Key Features
- 1Ensure durability with die-cast aluminum construction for environmental resistance. 2、Withstand low corrosion stress, suitable for diverse industrial applications. 3、Operate flexibly within a -40°C to 150°C ambient temperature range. 4、Meet environmental regulations with RoHS-compliant design and materials. 5、Achieve precise operation per ISO 15552 with a steel and PTFE rod end.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 50 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 150°C | Product weight | 216g |
| Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
| Rod end bearing material | Steel PTFE | Material of screws | Steel Galvanized |
| Manufacturer ID | 174399 |
Specifications may be subject to change without notice
