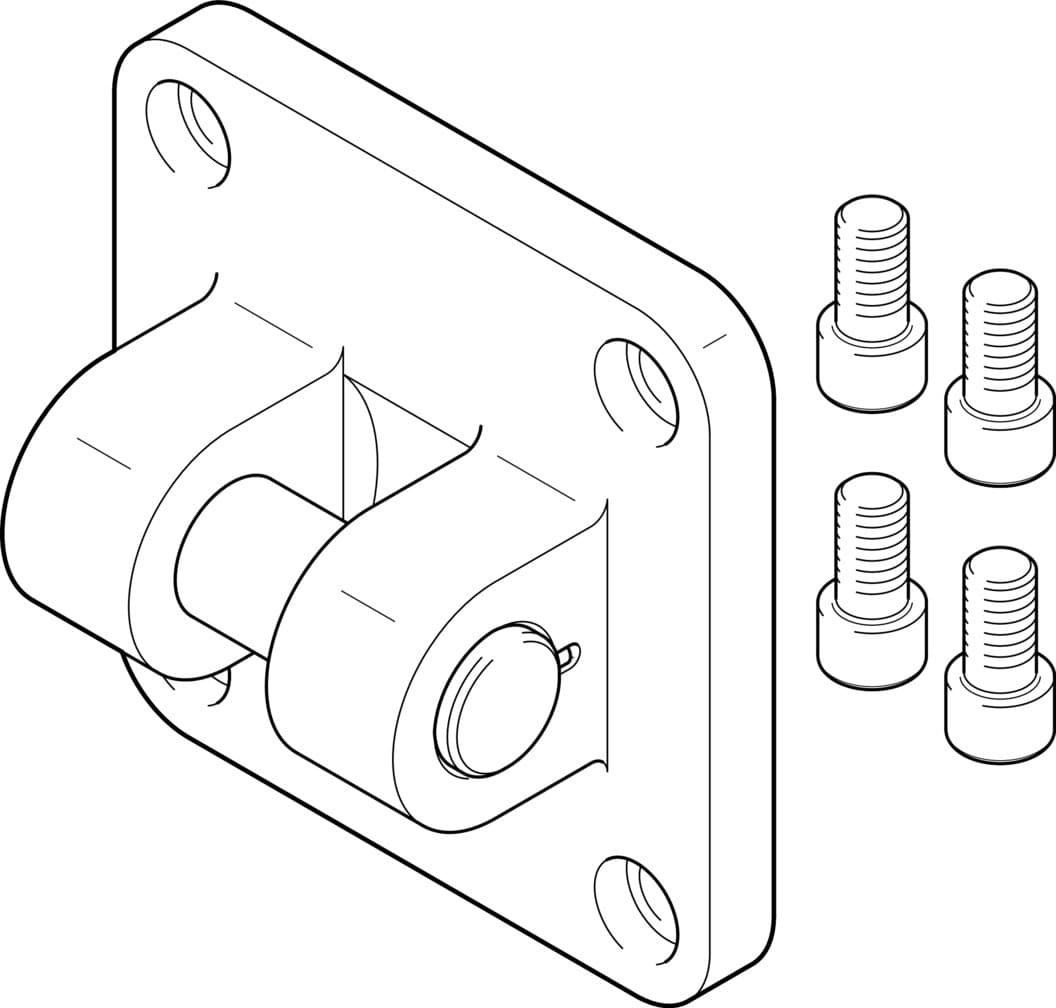

sng-200
Product ID:2330
Updated: 2026/4/4
Key Features
- 1Meet ISO 15552 standards for broad system compatibility. 2、Provide moderate CRC 2 corrosion resistance for demanding environments. 3、Ensure RoHS compliance, free from harmful copper and PTFE. 4、Feature robust die-cast aluminum and steel bolt construction. 5、Operate reliably from -40°C to 150°C for versatile applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 200 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 150°C | Product weight | 5160g |
| Note on materials | RoHS-compliant | Mounting material | Die-cast aluminum |
| Bolt material | Steel Galvanized | Material of screws | Steel Galvanized |
| Fuse material | Spring steel, galvanized | Manufacturer ID | 152598 |
Specifications may be subject to change without notice
