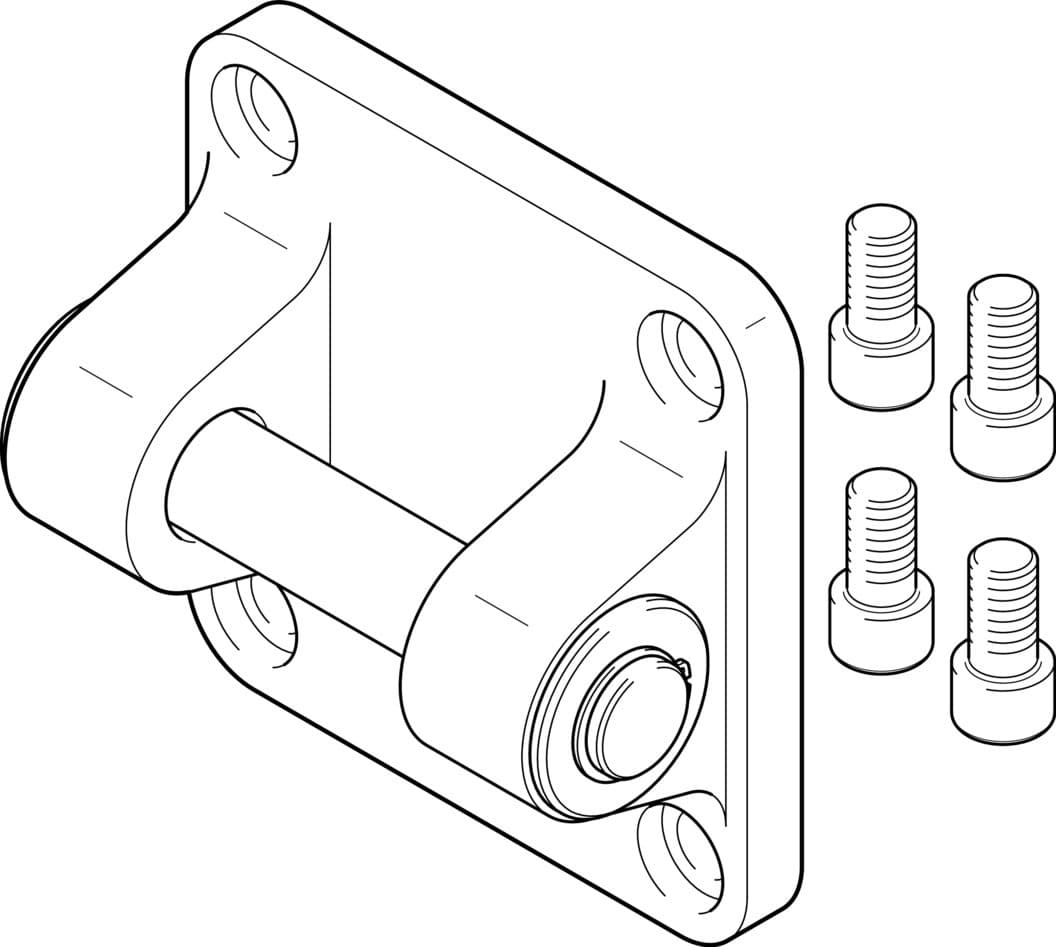

sngb-320
Product ID:3870
Updated: 2026/7/6
Key Features
- 1Meet ISO 15552 standards for broad pneumatic system compatibility.
- 2Achieve CRC 1 corrosion resistance for harsh industrial environments.
- 3Ensure stability with a robust 26,636-gram construction.
- 4Utilize high-quality materials like spheroidal graphite cast iron.
- 5Operate reliably across a wide -40°C to 90°C temperature range.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 320 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -40°C 90°C | Product weight | 26636g |
| Note on materials | RoHS-compliant | Mounting material | Spherulitic graphite iron |
| Bolt material | Steel Galvanized | Material of bearing | Polymer |
| Disc material | Steel, galvanized | Material of screws | Steel Galvanized |
| Fuse material | Spring steel, galvanized | Manufacturer ID | 157513 |
Specifications may be subject to change without notice
