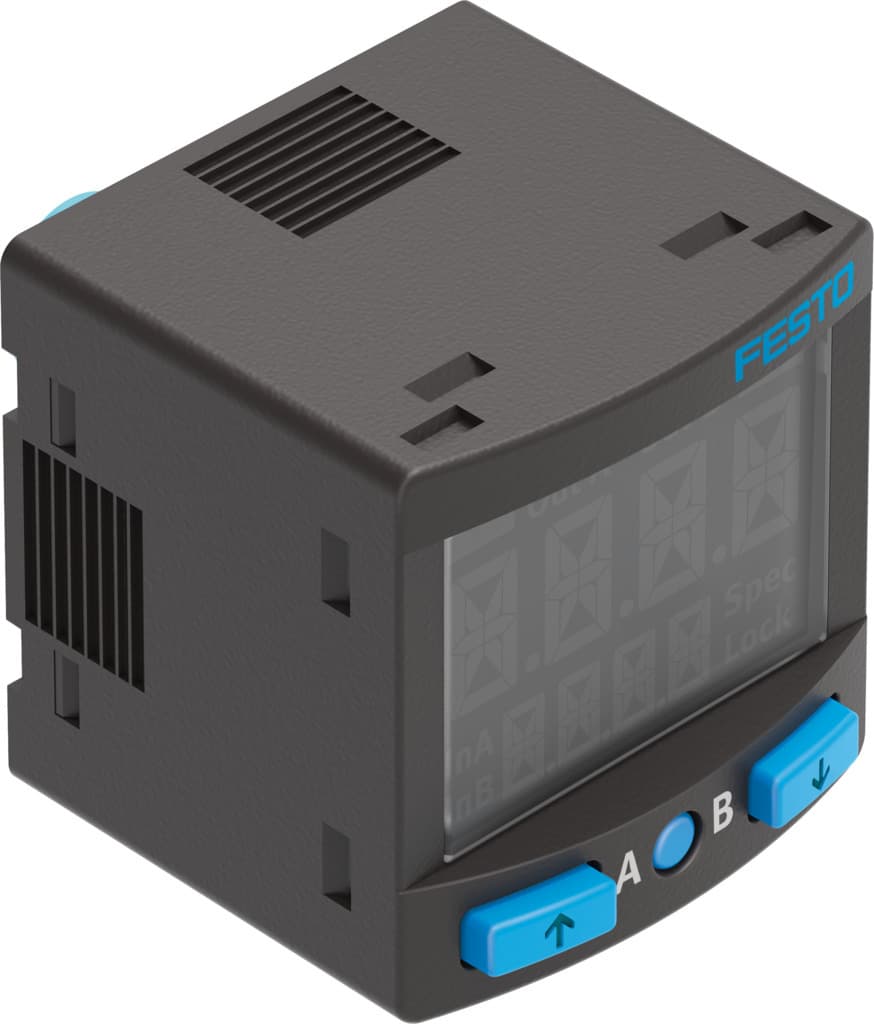

span-b11r-q4-pnlk-pnvba-l1
Product ID:680
Updated: 2026/4/3
Key Features
- 1Operate across a wide 0°C to 50°C temperature range. 2、View clear readings on an illuminated LCD display. 3、Withstand harsh conditions with an IP40 protection rating. 4、Integrate flexibly using switching or analog output signals. 5、Monitor compressed air and inert gases per ISO 8573-1:2010.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00995685 | Certification | RCM compliance mark c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Certificate issuing authority | UL E322346 | Note on materials | RoHS-compliant |
| Measured variable | Relative pressure | Method of measurement | Piezoresistive pressure sensor |
| Pressure measuring range initial value | -14.5psi | Pressure measuring range end value | 145psi |
| Max. overload pressure | 15bar | Overload pressure | 217.5psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible |
| Temperature of medium | 0°C 50°C | Ambient temperature | 0°C 50°C |
| Accuracy in ± % FS | 1.5%FS | Repetition accuracy in ± %FS | 0.3%FS |
| Temperature co-efficient in ± %FS/K | 0.05%FS/K | Switching output | 2 x PNP or 2 x NPN switchable |
| Switching function | Window comparator Threshold value comparator Auto difference monitoring | Switching element function | N/C contact/N/O contact switchable |
| Max. output current | 100mA | Analog output | 0 - 10 V 4 - 20 mA 1 - 5 V |
| Max. load resistance of current output | 500Ohm | Min. load resistance of voltage output | 20kOhm |
| Short-circuit protection | yes | Protocol | IO-Link? |
| IO-Link?, protocol version | Device V 1.1 | IO-Link?, profile | Smart sensor profile |
| IO-Link?, function classes | Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel | IO-Link?, communication mode | COM2 (38,4 kBd) |
| IO-Link?, SIO mode support | Yes | IO-Link?, port class | A |
| IO-Link?, process data width OUT | 0 Byte | IO-Link?, process data width IN | 2 Byte |
| IO-Link?, process data content IN | 14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring) | IO-Link?, minimum cycle time | 3 ms |
| IO-Link?, data memory required | 500byte | DC operating voltage range | 15V 30V |
| Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | Connection diagram L1J | Electrical connection 1, number of pins/wires | 4 |
| Electrical connection for input 1, connection pattern | 00995428 | Type of mounting | Front panel mounting With thread With wall/surface bracket |
| Mounting position | Any | Pneumatic connection | For pneumatic tubing outside diameter 4 mm |
| Product weight | 25g | Housing material | PA-reinforced |
| Materials in contact with the media | FPM NBR PA-reinforced | Display type | Illuminated LCD |
| Displayable unit(s) | MPa bar inH2O inHg kPa kgf/cm2 mbar mmHg psi | Setting options | IO-Link? Teach-in Via display and pushbuttons |
| Protection against tampering | IO-Link? PIN code | Setting range threshold value | 0% 100% |
| Setting range hysteresis | 0% 90% | Degree of protection | IP40 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 8134895 |
