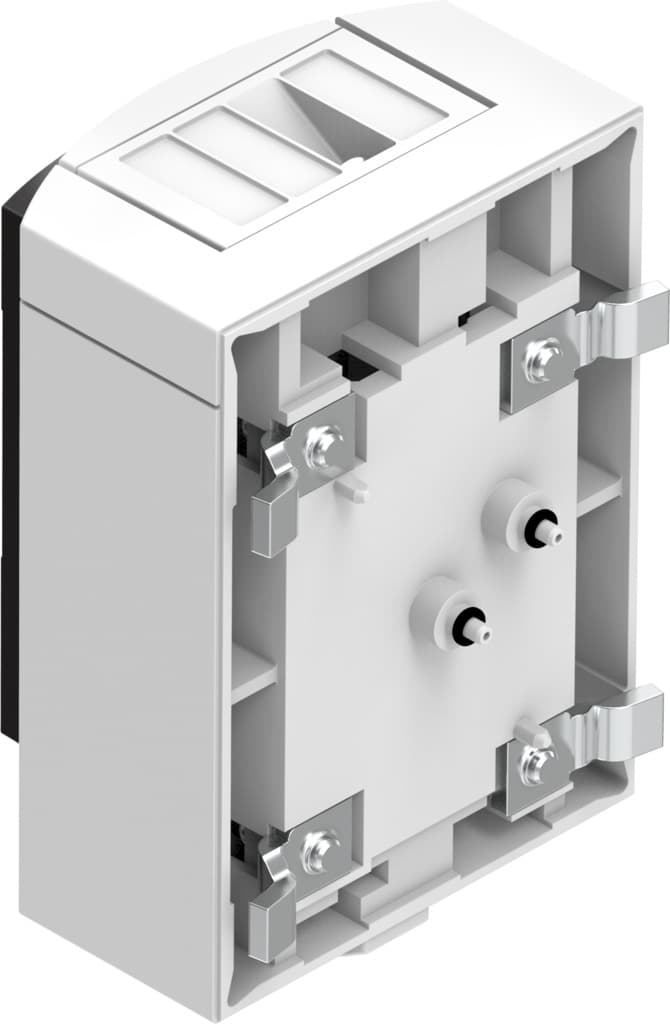

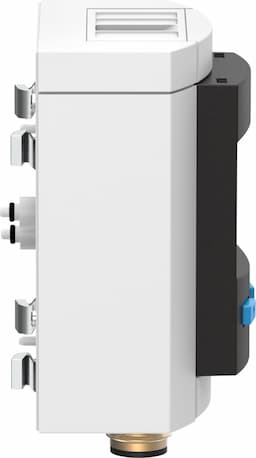

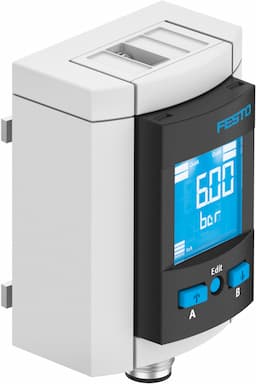

spau-p10r-ms6-f-l-pnlk-pnvba-m12d
Product ID:16275
Updated: 2026/4/3
Key Features
- 1Deliver ±1.5% FS accuracy for reliable process control. 2、Integrate seamlessly using the IO-Link protocol and smart profiles. 3、Withstand overloads up to 1.5 MPa in harsh industrial environments. 4、Monitor pneumatic system pressure with compressed air or inert gases. 5、Configure easily via the illuminated display or IO-Link Teach-in.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00995410 | Certification | RCM compliance mark c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| KC characters | KC EMC | Note on materials | RoHS-compliant |
| Measured variable | Relative pressure | Method of measurement | Piezoresistive pressure sensor |
| Pressure measuring range initial value | 0psi | Pressure measuring range end value | 145psi |
| Overload pressure | 217.5psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
| Ambient temperature | 0°C 50°C | ADC resolution | 12bit |
| Accuracy in ± % FS | 1.5%FS | Repetition accuracy in ± %FS | 0.3%FS |
| Temperature co-efficient in ± %FS/K | 0.05%FS/K | Switching output | 2 x PNP or 2 x NPN switchable |
| Switching function | Freely programmable | Switching element function | N/C contact/N/O contact switchable |
| Max. output current | 100mA | Analog output | 0 - 10 V 4 - 20 mA 1 - 5 V |
| Rise time | 3ms | Max. load resistance of current output | 500Ohm |
| Min. load resistance of voltage output | 10kOhm | Short-circuit protection | yes |
| Protocol | IO-Link? | IO-Link?, protocol version | Device V 1.1 |
| IO-Link?, profile | Smart sensor profile | IO-Link?, function classes | Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel |
| IO-Link?, communication mode | COM2 (38,4 kBd) | IO-Link?, SIO mode support | Yes |
| IO-Link?, port class | A | IO-Link?, process data width OUT | 0 Byte |
| IO-Link?, process data width IN | 2 Byte | IO-Link?, process data content IN | 14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring) |
| IO-Link?, minimum cycle time | 3 ms | IO-Link?, data memory required | 500byte |
| DC operating voltage range | 20V 30V | Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, type of mounting | Compatible with latching lock Compatible with screw lock rotatable |
| Electrical connection for input 1, connection pattern | 00995386 | Type of mounting | On service unit |
| Mounting position | Any | Pneumatic connection | Flange |
| Product weight | 80g | Materials in contact with the media | FPM PA-reinforced |

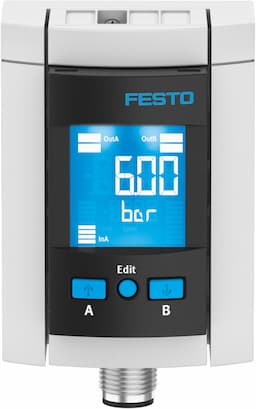

| Display type | Illuminated LCD | Displayable unit(s) | MPa bar inH2O inHg kPa kgf/cm2 mmHg psi |
| Setting options | IO-Link? Teach-in Via display and pushbuttons | Protection against tampering | IO-Link? PIN code |
| Setting range threshold value | 0% 100% | Setting range hysteresis | 0% 90% |
| Degree of protection | IP65 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Manufacturer ID | 8074906 |
Specifications may be subject to change without notice
