spte-v1r-s6-b-2.5k
Product ID:13630
Updated: 2026/4/3
Key Features
- 1Achieve a B10 service life of 30 million cycles and a 973-year MTTF. 2、Ensure compliance with EU EMC and RoHS international directives. 3、Operate reliably in diverse environments from 0°C to +50°C. 4、Simplify setup with quick switching-point adjustment via a button. 5、Monitor status in real-time with analogue output and LED indicator.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00992257 | Certification | RCM compliance mark c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Certificate issuing authority | UL E322346 | Note on materials | RoHS-compliant |
| Measured variable | Relative pressure | Method of measurement | Piezoresistive pressure sensor |
| Pressure measuring range initial value | 0psi | Pressure measuring range end value | -14.5psi |
| Overload pressure | 72.5psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
| Ambient temperature | 0°C 50°C | Accuracy in ± % FS | 3%FS |
| Repetition accuracy in ± %FS | 0.3%FS | Temperature co-efficient in ± %FS/K | 0.05%FS/K |
| Analog output | 1 - 5 V | Rise time | 1ms |
| Min. load resistance of voltage output | 15kOhm | Short-circuit protection | For all electrical connections |
| DC operating voltage range | 10V 30V | Reverse polarity protection | for all electrical connections |

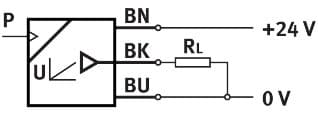

| Electrical connection | 3-wire Cable Open end | Cable length | 2.5m |
| Type of mounting | Plug-in | Mounting position | Any |
| Pneumatic connection | Push-in sleeve QS-6 | Product weight | 35g |
| Housing material | PA-reinforced | Sealing ring material | FPM |
| Degree of protection | IP40 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 571470 |
Specifications may be subject to change without notice
