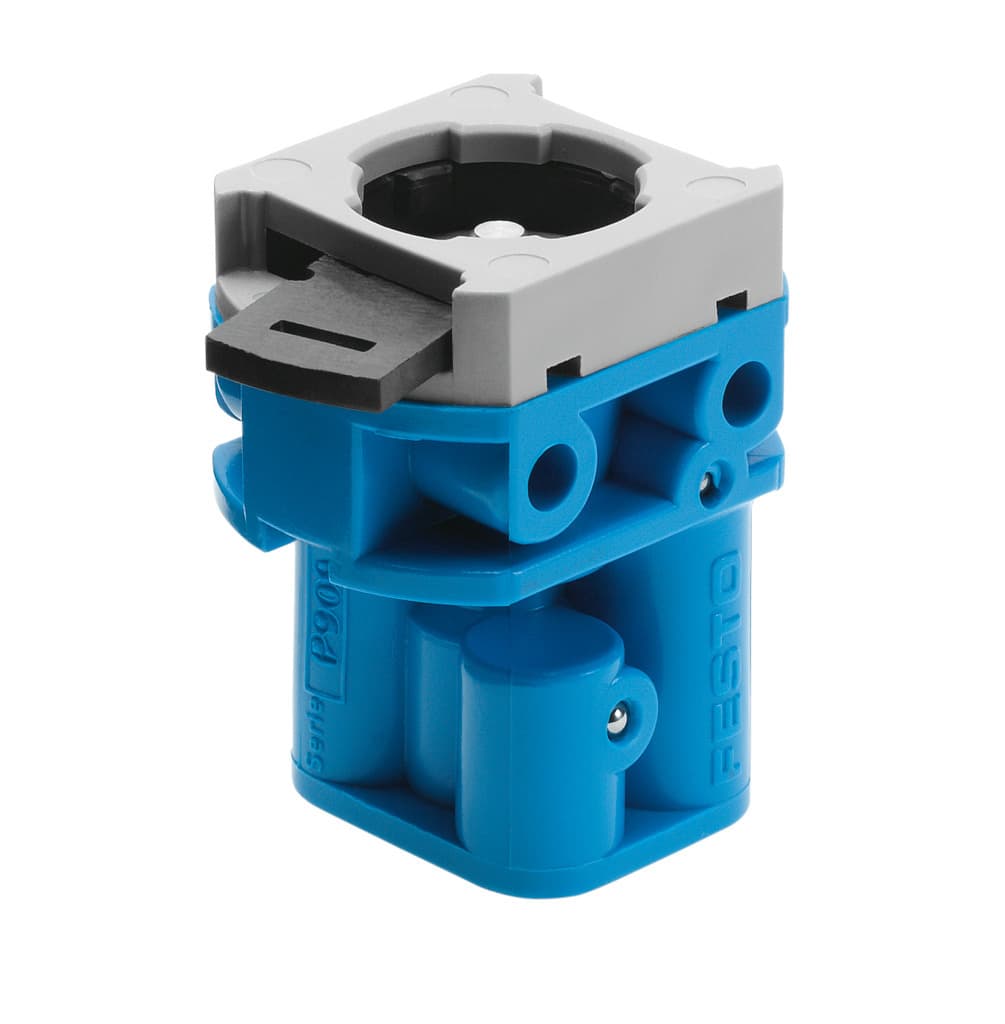

sv-3-m5
Product ID:14803
Updated: 2026/7/4
Key Features
- 1Achieve a high flow rate of 65 l/min for efficient system operation.
- 2Ensure durability with a robust brass and polymer housing construction.
- 3Integrate easily using the compact design with a 2 mm nominal width.
- 4Control precisely with the monostable 3/2-way valve function.
- 5Operate manually with a light actuating force of 12 N.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, closed, monostable | Actuation type | Manual |
| Standard nominal flow rate | 65l/min | Operating pressure | -0.95bar 8bar |
| Structural design | Poppet valve with return spring | Reset method | Mechanical spring |
| Nominal width | 2mm | Sealing principle | Soft |
| Mounting position | Any | Type of control | Direct |
| Flow direction | Non-reversible | Symbol | 00991292 |
| Lap | Overlap | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Actuating force | 12N |
| Product weight | 40g | Type of mounting | Front panel mounting With through-hole |
| Pneumatic connection 1 | M5 | Seals material | NBR |
| Housing material | Polymer Brass | Manufacturer ID | 6817 |
Specifications may be subject to change without notice
