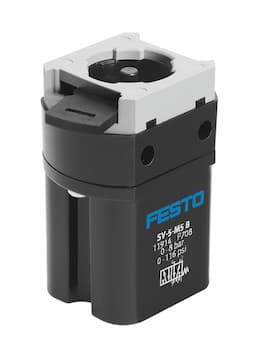

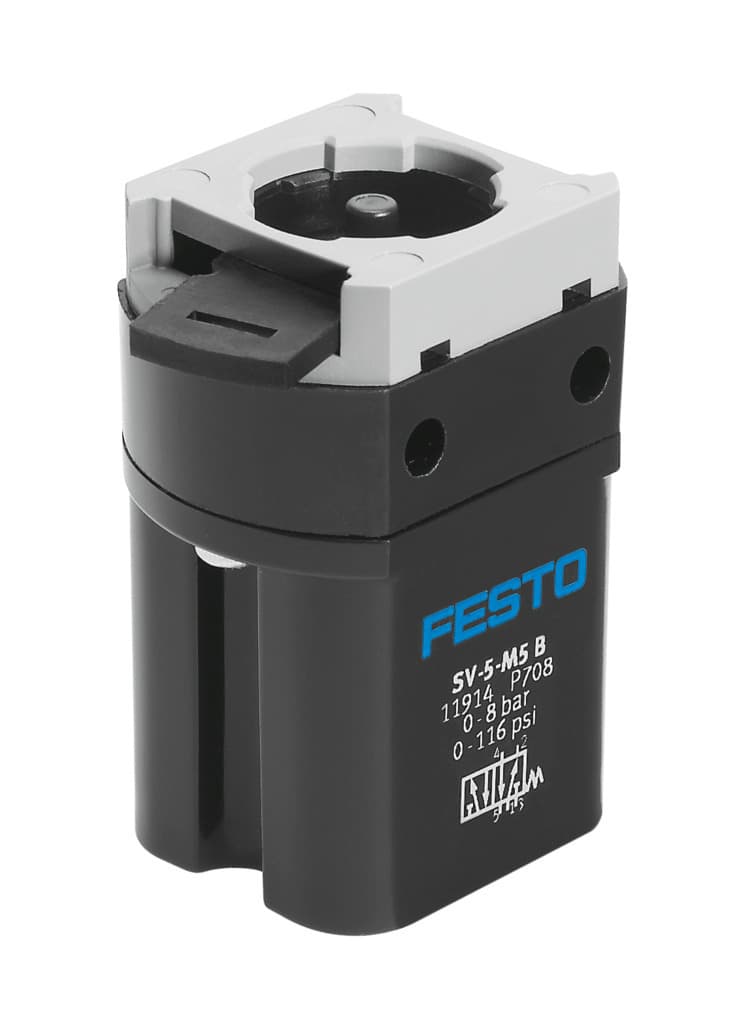

sv-5-m5-b
Product ID:832
Updated: 2026/4/3
Key Features
- 1Control airflow manually with the 5/2-way Festo SV-5-M5-B valve. 2、Achieve a 95 L/min flow rate at pressures up to 8 bar. 3、Ensure safety in ATEX zones 1, 2, 21, and 22. 4、Benefit from durable NBR seals and a lightweight 53g brass/polymer body. 5、Simplify installation with front-panel M5 threading and 24h shipping.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Manual |
| Standard nominal flow rate | 95l/min | Operating pressure | 0bar 8bar |
| Structural design | Poppet valve with return spring | Reset method | Mechanical spring |
| Nominal width | 2.3mm | Sealing principle | Soft |
| Mounting position | Any | Type of control | Direct |
| Symbol | 00991339 | Lap | Overlap |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
| Actuating force | 17N | Product weight | 53g |
| Type of mounting | Front panel mounting With through-hole | Pneumatic connection 1 | M5 |
| Seals material | NBR | Housing material | Polymer Brass |
| Manufacturer ID | 11914 |
Specifications may be subject to change without notice
