sve4-is-r-hm8-2n-m8
Product ID:11058
Updated: 2026/4/3
Key Features
- 1Work with position sensors like SMH-S1-HG for precise automation. 2、Program switching functions freely for custom output needs. 3、Ensure reliable operation with robust IP65 protection rating. 4、Meet global standards with C UL US listed and CE marking. 5、Mount directly on DIN rail or use adapter plate for flexibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00991963 | Certification | RCM compliance mark c UL us - Listed (OL) |
| UL-ambient temperature | -20°C 60°C | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
| Signal range | 0 - 20 mA +/-0.6 mA | Ambient temperature | -20°C 70°C |

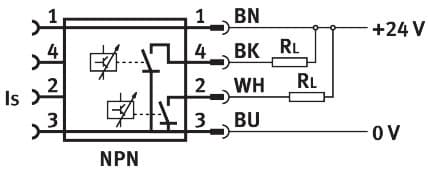

| Switching output | 2xNPN | Switching function | Freely programmable |
| Switching element function | Switchable | Short-circuit protection | Pulsed |
| Overload protection | Available | DC operating voltage range | 10V 30V |
| Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00991872 | Electrical connection 2, connection type | Plug |
| Electrical connection 2, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 2, number of pins/wires | 4 |
| Electrical connection 2, type of mounting | Screw-type lock | Electrical connection 2, connection pattern | 00991171 |
| Product weight | 19g | Housing material | ABS |
| Setting options | Teach-in | Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer ID | 544221 |
Specifications may be subject to change without notice
