sve4-us-r-hm8-2n-m8
Product ID:11057
Updated: 2026/7/4
Key Features
- 1Enhance automation with advanced signal processing for reliable data.
- 2Integrate easily using IO-Link technology with sensors and actuators.
- 3Ensure robust performance in demanding industrial environments.
- 4Select from Festo's compatible range of automation solutions.
- 5Meet high quality standards for efficient, trusted systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00991961 | Certification | RCM compliance mark c UL us - Listed (OL) |
| UL-ambient temperature | -20°C 60°C | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
| Signal range | 0 - 10 V +/-0.3 V | Ambient temperature | -20°C 70°C |

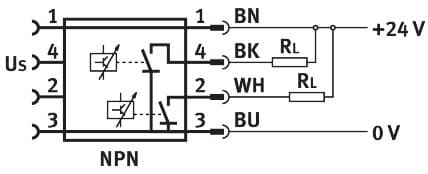

| Switching output | 2xNPN | Switching function | Freely programmable |
| Switching element function | Switchable | Short-circuit protection | Pulsed |
| Overload protection | Available | DC operating voltage range | 10V 30V |
| Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00991872 | Electrical connection 2, connection type | Plug |
| Electrical connection 2, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 2, number of pins/wires | 4 |
| Electrical connection 2, type of mounting | Screw-type lock | Electrical connection 2, connection pattern | 00991171 |
| Product weight | 19g | Housing material | ABS |
| Setting options | Teach-in | Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer ID | 544220 |
Specifications may be subject to change without notice
