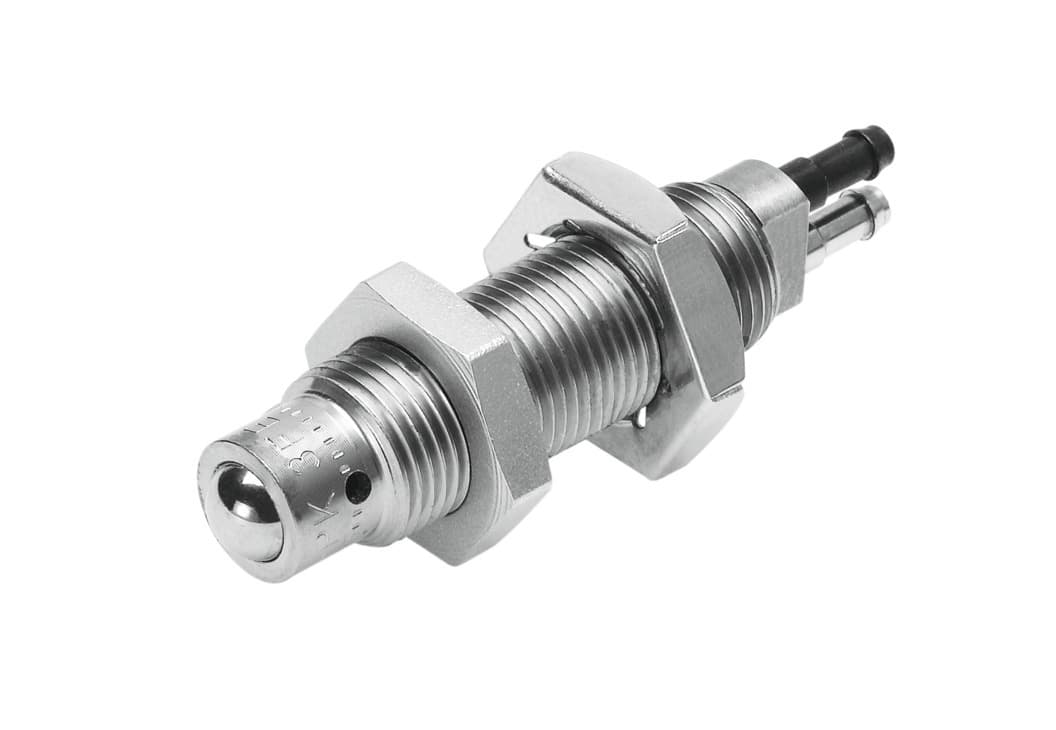

svk-3-pk-3
Product ID:854
Updated: 2026/4/3
Key Features
- 1Ensure precise control with the 3/2-way monostable SVK-3-PK-3 valve. 2、Handle a wide 50L/min flow for versatile compressed air applications. 3、Achieve reliable operation using the soft sealing and mechanical spring reset. 4、Simplify integration with direct piloting and non-reversible flow direction. 5、Operate reliably from -10°C to 80°C, meeting VDMA24364 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, closed, monostable | Actuation type | Mechanical |
| Standard nominal flow rate | 50l/min | Pneumatic working port | PK-3 |
| Operating pressure | -0.9bar 8bar | Structural design | Ball seat |
| Reset method | Mechanical spring | Nominal width | 1.5mm |
| Sealing principle | Soft | Mounting position | Any |
| Type of control | Direct | Flow direction | Non-reversible |
| Symbol | 00991097 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364 zone III |
| Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 80°C |
| Type of mounting | With through-hole | Pneumatic connection 1 | PK-3 |
| Pneumatic connection 2 | PK-3 | Pneumatic connection 3 | Not ducted |
| Manufacturer ID | 12146 |
Specifications may be subject to change without notice
