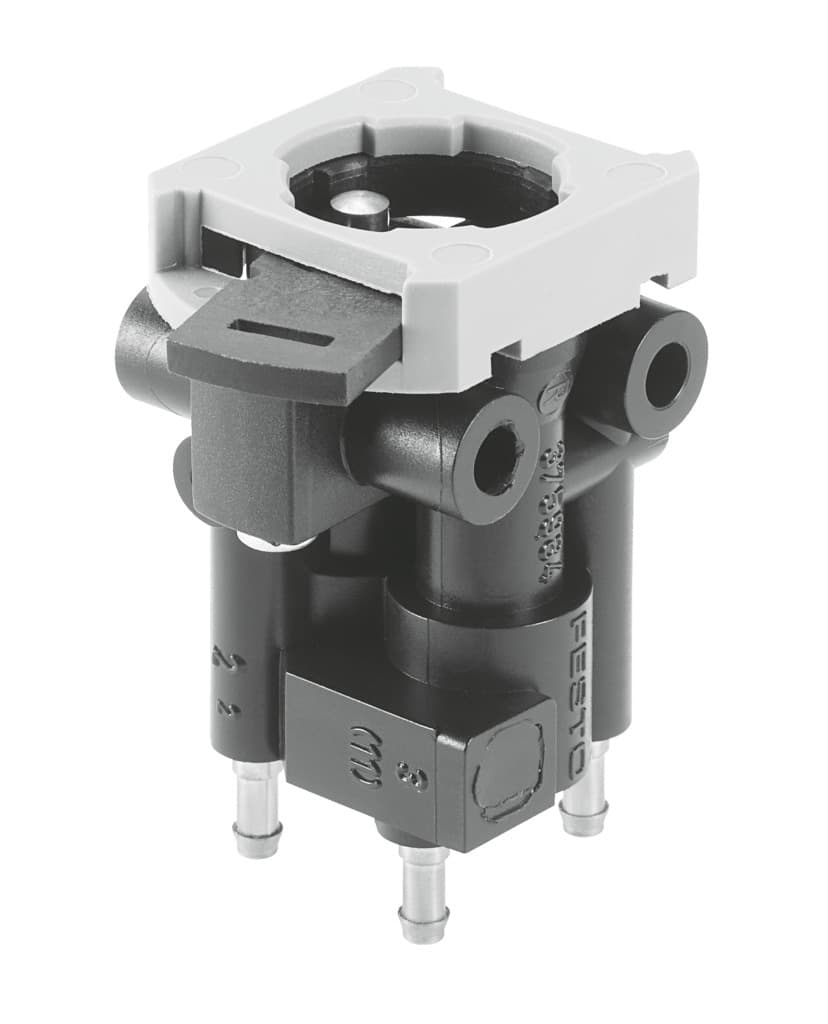

sv/o-3-pk-3x2
Product ID:5708
Updated: 2026/7/4
Key Features
- 1Control pneumatic systems precisely with a 2x3/2-way monostable closed function.
- 2Handle moderate to high airflow with a 70L/min nominal flow rate.
- 3Ensure reliable operation using a mechanical spring reset method.
- 4Benefit from durability with NBR soft sealing to minimize wear.
- 5Use with compressed air per ISO 8573-1:2010 for wide compatibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 2x3/2, closed, monostable | Standard nominal flow rate | 70l/min |
| Pneumatic working port | PK-3 | Operating pressure | 0bar 8bar |
| Reset method | Mechanical spring | Nominal width | 2.5mm |
| Sealing principle | Soft | Mounting position | Any |
| Type of control | Direct | Flow direction | Non-reversible |
| Symbol | 00997337 | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Product weight | 34g |
| Type of mounting | With through-hole | Pneumatic connection 1 | PK-3 |
| Pneumatic connection 2 | PK-3 | Seals material | NBR |
| Manufacturer ID | 184135 |
Specifications may be subject to change without notice
