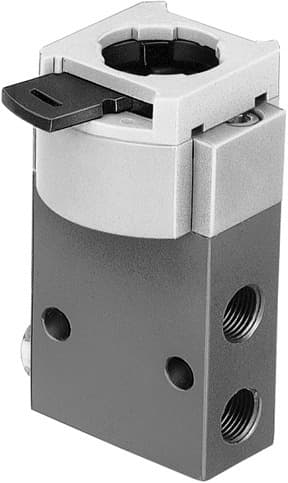

svos-3-1/8
Product ID:694
Updated: 2026/4/3
Key Features
- 1Control pneumatic systems precisely with 3/2 open, single solenoid valve function. 2、Ensure reliable operation and easy maintenance via mechanical actuation. 3、Achieve efficient airflow management with a 120L/min nominal flow rate. 4、Handle demanding conditions at pressures up to 8BAR. 5、Enhance durability with a soft-sealing piston seat and spring reset.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, open, monostable | Actuation type | Mechanical |
| Standard nominal flow rate | 120l/min | Pneumatic working port | G1/8 |
| Operating pressure | 3.5bar 8bar | Structural design | Piston seat |
| Reset method | Mechanical spring | Sealing principle | Soft |
| Mounting position | Any | Type of control | Direct |
| Flow direction | Non-reversible | Symbol | 00991107 |
| Lap | Overlap | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 60°C | Actuating force | 8N |
| Type of mounting | With through-hole | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 | Pneumatic connection 3 | G1/8 |
| Cover material | POM | Seals material | NBR TPE-U(PU) |
| Housing material | Aluminum | Manufacturer ID | 10191 |
Specifications may be subject to change without notice
