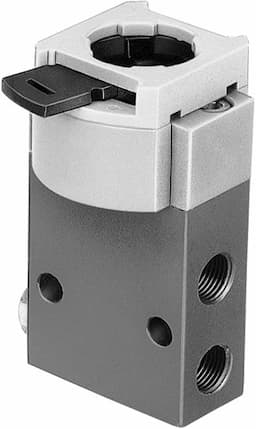

svs-3-1/8
Product ID:693
Updated: 2026/4/3
Key Features
- 1Ensure precise 3/2-way pneumatic control with mechanical actuation. 2、Deliver a standard nominal flow rate of 120 l/min for diverse applications. 3、Operate reliably within a versatile 3.5 to 8 bar pressure range. 4、Feature a piston seat design and spring reset for consistent sealing. 5、Handle compressed air per ISO8573-1:2010 from -10 to 60 °C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, closed, monostable | Actuation type | Mechanical |
| Standard nominal flow rate | 120l/min | Pneumatic working port | G1/8 |
| Operating pressure | 3.5bar 8bar | Structural design | Piston seat |
| Reset method | Mechanical spring | Sealing principle | Soft |
| Mounting position | Any | Type of control | Pilot-controlled |
| Flow direction | Non-reversible | Symbol | 00991106 |
| Note on forced dynamization | Switching frequency at least once a week | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Actuating force | 8N | Type of mounting | With through-hole |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 | Note on materials | RoHS-compliant |
| Cover material | POM | Seals material | NBR TPE-U(PU) |
| Housing material | Aluminum | Manufacturer ID | 10190 |
Specifications may be subject to change without notice
