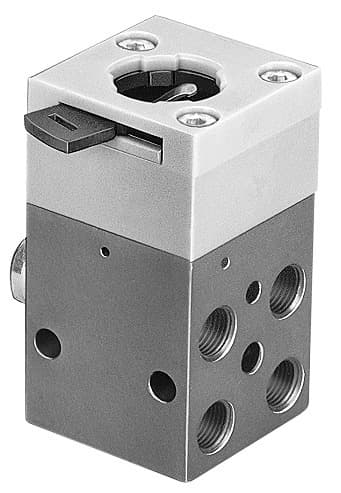

svs-4-1/8
Product ID:695
Updated: 2026/4/3
Key Features
- 1Control pneumatic systems precisely with the 4/2 monostable SVS-4-1/8 valve. 2、Achieve high flow rates up to 120 l/min for efficient operation. 3、Integrate easily using the standard G1/8 pneumatic working port. 4、Ensure durability in demanding environments with quality construction. 5、Purchase conveniently from authorized distributors and retailers.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 4/2, monostable | Actuation type | Mechanical |
| Standard nominal flow rate | 120l/min | Pneumatic working port | G1/8 |
| Operating pressure | 3.5bar 8bar | Structural design | Piston seat |
| Reset method | Mechanical spring | Sealing principle | Soft |
| Mounting position | Any | Type of control | Direct |
| Flow direction | Non-reversible | Symbol | 00991108 |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
| Actuating force | 8N | Type of mounting | With through-hole |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | G1/8 |
| Cover material | POM | Seals material | NBR TPE-U(PU) |
| Housing material | Aluminum | Manufacturer ID | 10192 |
Specifications may be subject to change without notice
