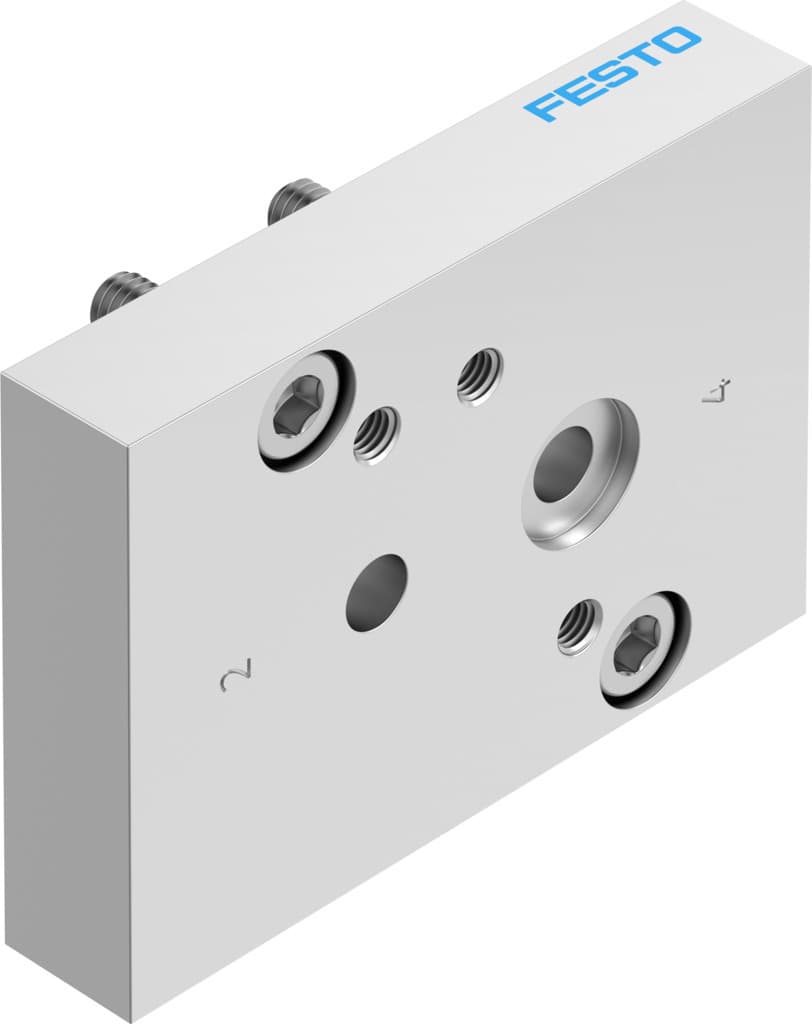

vaba-b14-fl12-fl14
Product ID:16683
Updated: 2026/4/3
Key Features
- 1Suit any mounting position for versatile installation. 2、Operate within a wide 1.5 to 10 bar pressure range. 3、Comply with ISO 8573-1:2010 compressed air standards. 4、Resist corrosion with Class 2 rating for durability. 5、Integrate easily with a compact, 188-gram design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Operating pressure | 1.5bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Storage temperature | -20°C 60°C |
| Temperature of medium | -20°C 60°C | Ambient temperature | -20°C 60°C |
| Product weight | 188g | Type of mounting | With through-hole |
| Pneumatic connection 2 | Flange 1/4 with NAMUR port pattern Flange 1/2 with NAMUR port pattern | Pneumatic connection 4 | Flange 1/4 with NAMUR port pattern Flansch 1/2 mit NAMUR Anschlussbild |
| Note on materials | RoHS-compliant | Material of sub-base | Wrought aluminum alloy |
| Manufacturer ID | 8098889 |
Specifications may be subject to change without notice
