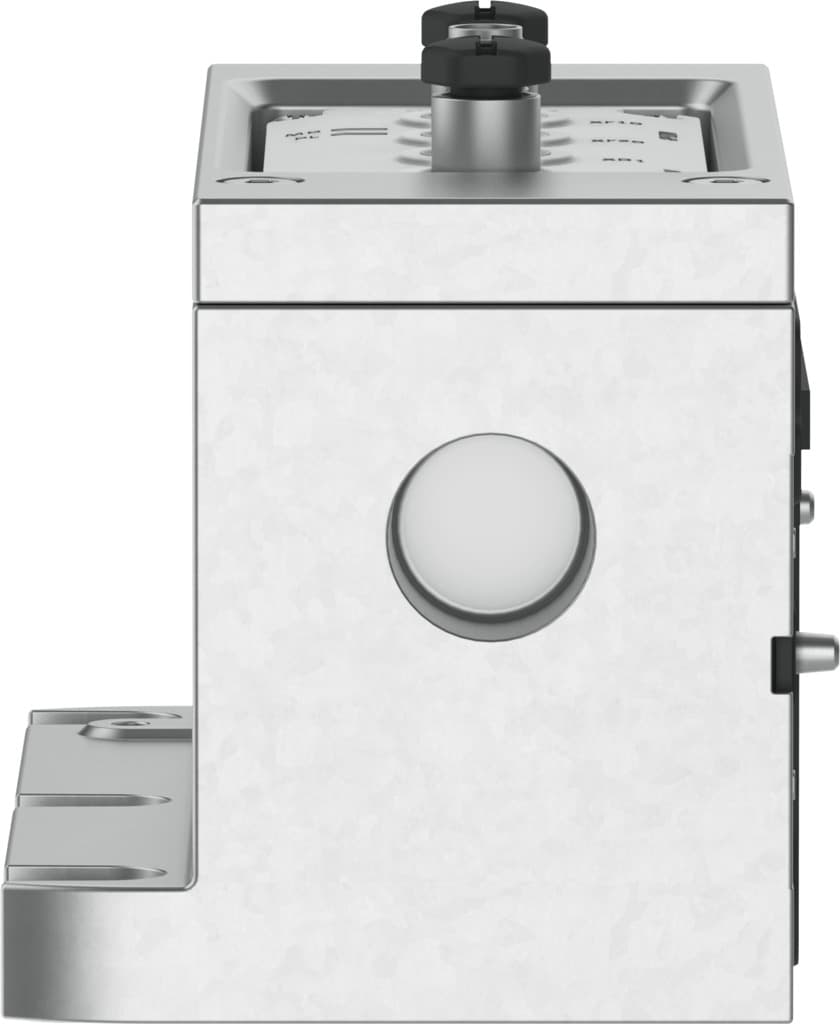

vaba-s6-1-ap
Product ID:448
Updated: 2026/7/4
Key Features
- 1Provide reverse polarity protection for safe operation.
- 2Enable real-time diagnostics via LED indicators.
- 3Support up to 32 solenoid coils efficiently.
- 4Facilitate communication with XF10/20 protocols.
- 5Construct with durable die-cast aluminum housing.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Connection position | Top | Reverse polarity protection | yes |
| Diagnostics via LED | Diagnostics per module Load power supply | Diagnose per internal communication | Load switch-off Electronics/sensors overvoltage Load overvoltage Electronics/sensors undervoltage Load undervoltage |
| Max. no. of valve positions | 12 | Max. no. of solenoid coils | 24 |
| Module parameters | Configuration of voltage monitoring, load supply PL Response in error state | Dimensions W x L x H | 71 mm x 142 mm x 84 mm |
| Fuse protection (short circuit) | Internal electronic fuse per channel | Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 34 mA |
| Intrinsic current consumption at nominal operating voltage load | Typically 16 mA | Power failure buffering of load | 3ms |
| Note regarding operating voltage | SELV/PELV fixed power supplies required Note voltage drop | Max. power supply | 2 x 4 A (external fuse required) |
| Nominal operating voltage DC for electronics/sensors | 24V | Nominal operating voltage DC load | 24V |
| Nominal operating voltage DC | 24V | Power failure buffering | 10ms |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % | Permissible voltage fluctuations load | ± 10% |
| Power supply, function | Incoming electronics/sensors and load | Power supply, type of connection | Plug |
| Power supply, connection technology | M8x1, A-coded as per EN 61076-2-104 | Power supply, number of pins/wires | 4 |
| Voltage forwarding, function | Outgoing electronics/sensors and load | Voltage forwarding, connection type | Socket |
| Voltage forwarding, connection technology | M8x1, A-coded as per EN 61076-2-104 | Voltage forwarding, number of pins/wires | 4 |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -20°C 60°C | Relative air humidity | 5 - 95 % Non-condensing |
| Protection against direct and indirect contact | PELV SELV | Degree of protection | IP65 |
| Note on degree of protection | In mounted state Unused connections sealed | Ambient temperature | 5°C 50°C |
| Nominal altitude of use above sea level | <= 2000 m NHN | Product weight | 712g |
| Max. cable length | 50 m system communication | Communication interface, function | System communication XF10 IN / XF20 OUT |
| Communication interface, connection type | 2x socket | Communication interface, connection technology | M8x1, D-coded as per EN 61076-2-114 |
| Communication interface, number of pins/wires | 4 | Communication interface, protocol | AP-COM |
| Communication interface, shielding | yes | Note on materials | RoHS-compliant |
| Cover material | Die-cast aluminum | Threaded sleeve material | Brass, nickel-plated |
| Manufacturer ID | 8152356 |
Specifications may be subject to change without notice
