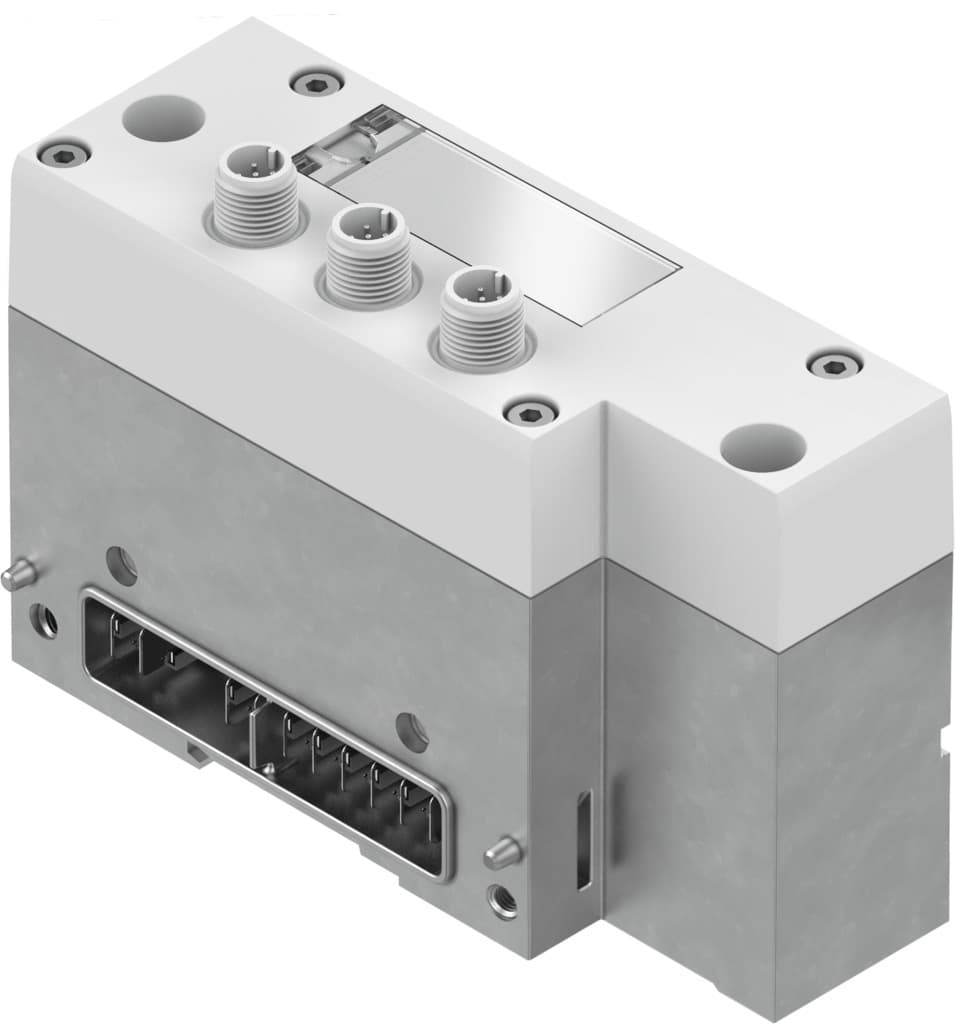

vaba-s6-1-x1-3v-cb
Product ID:16438
Updated: 2026/4/3
Key Features
- 1Support up to 24 valve positions and solenoid coils for flexible system design. 2、Detect wire breaks, short circuits, and undervoltage for reliable monitoring. 3、Ensure durability with IP65 and NEMA 4 protection ratings. 4、Reduce energy use with low 11 mA intrinsic current consumption. 5、Integrate easily via CPX fieldbus for straightforward connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve manifold interface | Type 44, VTSA | Diagnostics | Wire break per valve coil Short circuit of pneumatic valves Undervoltage of pneumatic valves |
| Max. no. of valve positions | 12 for bistable pneumatic valves 24 for monostable pneumatic valves | LED indicators | 1 group diagnostics 3 load supply Channel status on pneumatic valves |
| Parameterization | Fail-safe modes per channel Forcing per channel Idle mode per channel Module monitoring | Fuse protection (short circuit) | Internal electronic fuse per pneumatic valve output |
| DC operating voltage range | 21.6V 26.4V | Intrinsic current consumption at nominal operating voltage | typ. 11 mA (electronics operating voltage supply) Typ. 45 mA (pneumatic valve load power supply) |
| Max. power supply per channel | 0.2?A | Max. residual current per module | 6A |
| Nominal operating voltage DC | 24V | Electrical isolation between channel and internal bus | yes |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
| Product weight | 580g | Electrical actuation | Fieldbus |
| Electrical connection | 3x M12x1 A-coded 5-pin Plug Via CPX | Note on materials | RoHS-compliant |
| Cover material | PA | Housing material | Die-cast aluminum |
| Manufacturer ID | 8082879 |
Specifications may be subject to change without notice
