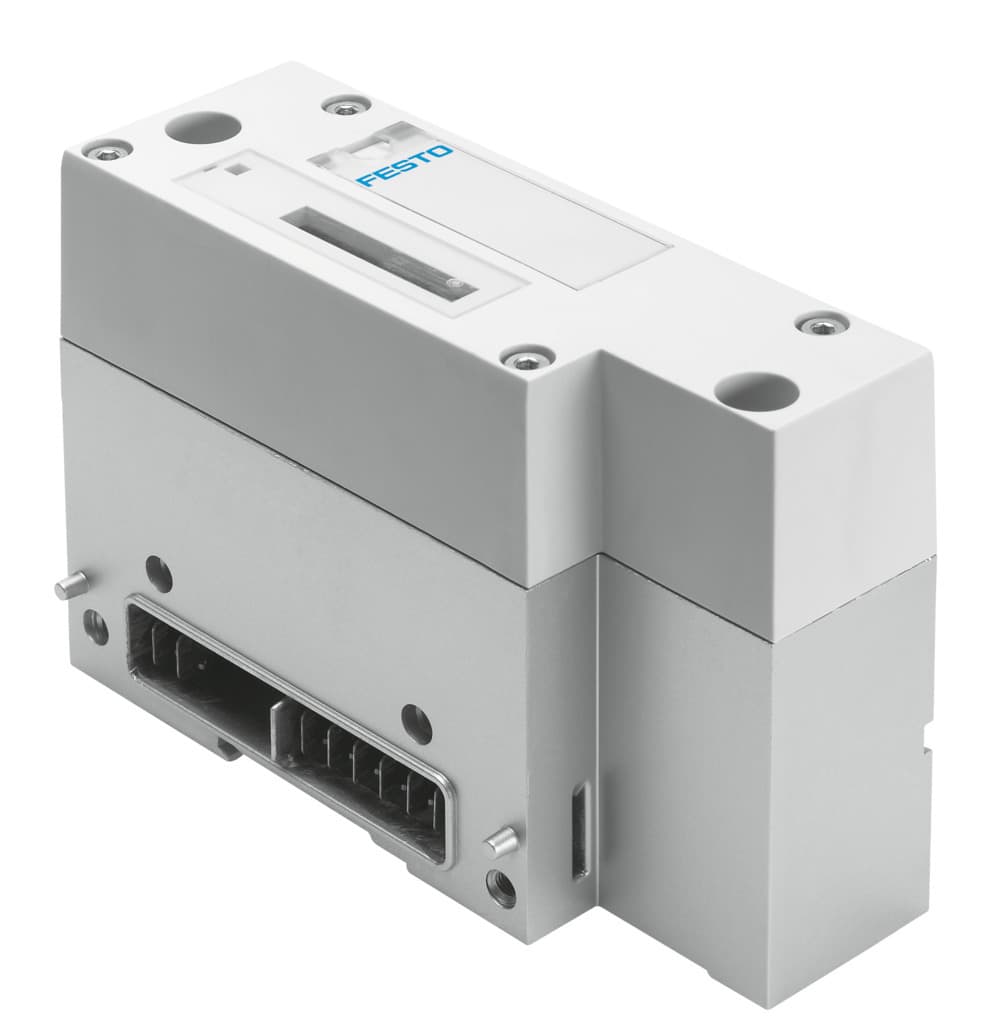

vaba-s6-1-x2
Product ID:11832
Updated: 2026/4/3
Key Features
- 1Integrate seamlessly with Type 44 and VTSA valve terminals. 2、Ensure reliable operation with undervoltage detection and group diagnostics. 3、Support up to 16 bistable or 32 monostable valve positions. 4、Parameterize failsafe and forcing functions per channel for safety. 5、Resist corrosion with die-cast aluminum housing and PA cover.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve manifold interface | Type 44, VTSA | Diagnostics | Undervoltage of pneumatic valves |
| Max. no. of valve positions | 16 for bistable pneumatic valves 32 for monostable pneumatic valves | LED indicators | 1 group diagnostics Channel status on pneumatic valves |
| Parameterization | Fail-safe modes per channel Forcing per channel Idle mode per channel Module monitoring | Fuse protection (short circuit) | Internal electronic fuse per pneumatic valve output |
| DC operating voltage range | 21.6V 26.4V | Intrinsic current consumption at nominal operating voltage | Typ. 15 mA (electronics operating voltage supply) Typ. 50 mA (pneumatic valve load power supply) |
| Max. power supply per channel | 0.2?A | Max. residual current per module | 4A |
| Nominal operating voltage DC | 24V | Electrical isolation between channel and internal bus | Yes, when using an additional supply for the pneumatic valves |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
| Product weight | 590g | Electrical actuation | Fieldbus |
| Electrical connection | Via CPX | Note on materials | RoHS-compliant |
| Cover material | PA | Housing material | Die-cast aluminum |
| Manufacturer ID | 550663 |
Specifications may be subject to change without notice
