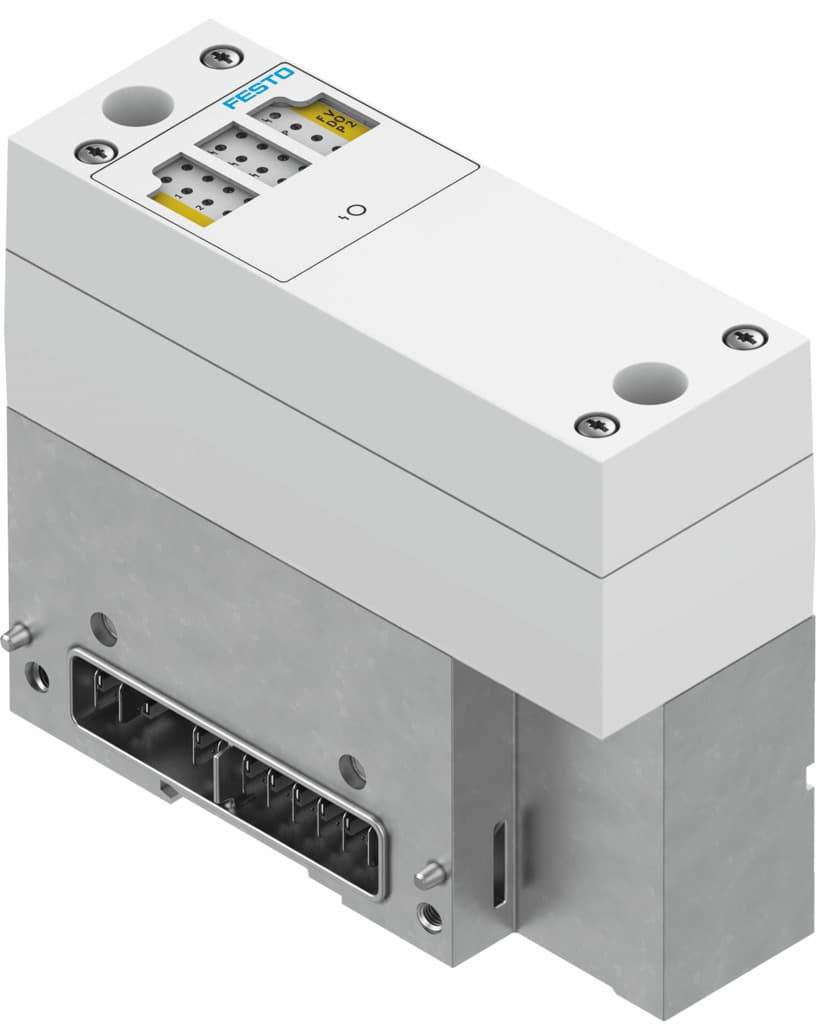

vaba-s6-1-x2-f1-cb
Product ID:16215
Updated: 2026/7/4
Key Features
- 1Withstand vibration tests per EN 60068-2-6.
- 2Pass shock tests per EN 60068-2-27.
- 3Diagnose wire breaks and short circuits.
- 4Support up to 24 monostable valve positions.
- 5Protect outputs with an internal electronic fuse.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Valve manifold interface | Type 44, VTSA-F-CB | Diagnostics | Wire break per valve coil Short circuit of pneumatic valves Undervoltage of pneumatic valves |
| Max. no. of valve positions | 12 for bistable pneumatic valves 24 for monostable pneumatic valves | LED indicators | 1 group diagnostics |
| Parameterization | Fail-safe modes per channel Forcing per channel Idle mode per channel Module monitoring | Fuse protection (short circuit) | Internal electronic fuse per pneumatic valve output |
| DC operating voltage range | 21.6V 26.4V | Intrinsic current consumption at nominal operating voltage | Typ. 110 mA for electronics with CPX-FVDA-P2 Typ. 25 mA for pneumatic valves without CPX-FVDA-P2 Typ. 45 mA for electronics without CPX-FVDA-P2 Typ. 90 mA for pneumatic valves with CPX-FVDA-P2 |
| Max. power supply per channel | 0.2?A | Max. residual current per module | 4.5A |
| Nominal operating voltage DC | 24V | Electrical isolation between channel and internal bus | Yes, when using an additional supply for the pneumatic valves |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | Degree of protection | IP65 |
| Ambient temperature | -5°C 50°C | Product weight | 734g |
| Electrical actuation | Fieldbus | Electrical connection | Via CPX |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Cover material | PA | Seals material | NBR |
| Material of screws | Steel | Manufacturer ID | 8068240 |
Specifications may be subject to change without notice
