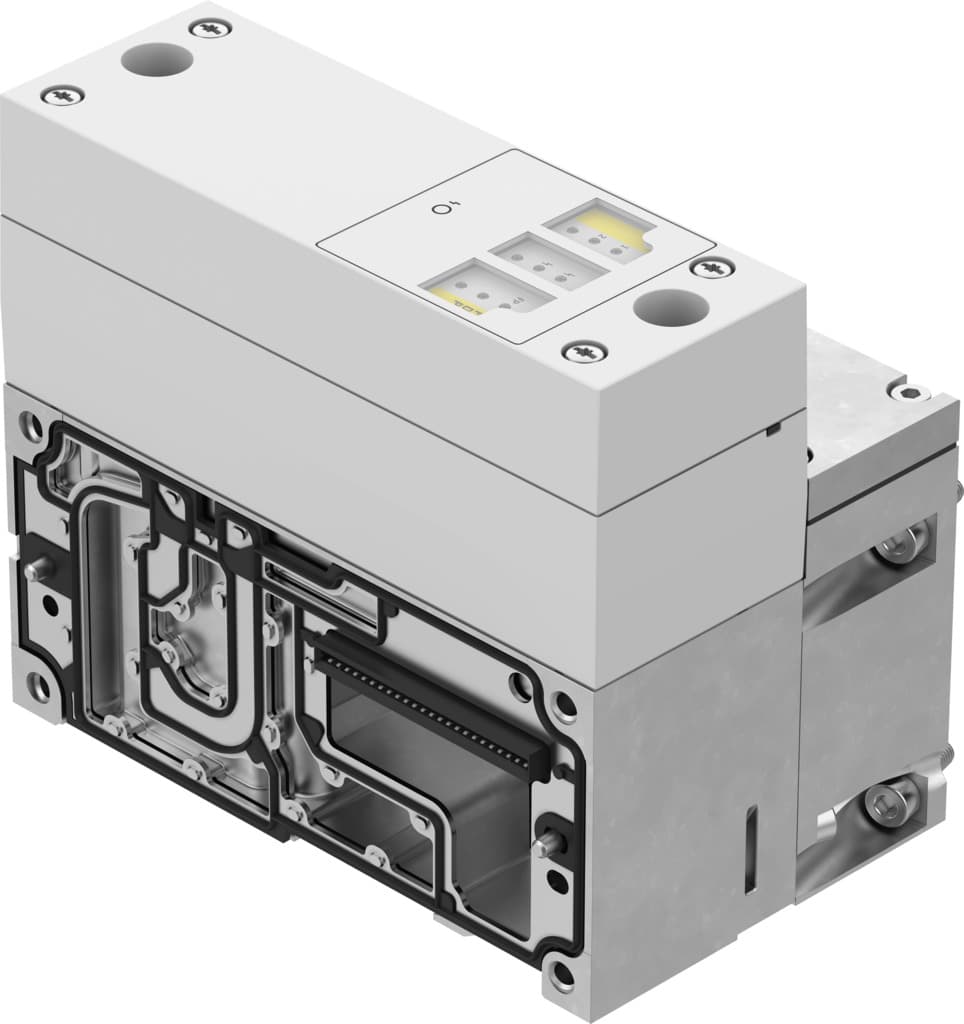

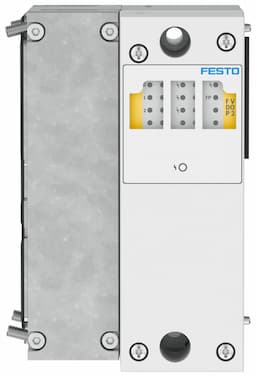

vaba-s6-1-x2-f1-cb-al
Product ID:447
Updated: 2026/4/3
Key Features
- 1Withstand severe vibration and shock for reliable performance. 2、Diagnose issues with wire break and short circuit protection. 3、Control up to 24 monostable valves efficiently. 4、Ensure safe connections with internal bus isolation. 5、Comply with EU EMC and RoHS directives.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Valve manifold interface | Type 44, VTSA-F-CB | Diagnostics | Wire break per valve coil Short circuit of pneumatic valves Undervoltage of pneumatic valves |
| Max. no. of valve positions | 12 for bistable pneumatic valves 24 for monostable pneumatic valves | LED indicators | 1 group diagnostics |
| Parameterization | Fail-safe modes per channel Forcing per channel Idle mode per channel Module monitoring | Fuse protection (short circuit) | Internal electronic fuse per pneumatic valve output |
| DC operating voltage range | 21.6V 26.4V | Intrinsic current consumption at nominal operating voltage | Typ. 15 mA for valves without CPX-FVDA-P2 Typ. 25 mA for electronics with CPX-FVDA-P2 |
| Max. power supply per channel | 0.2?A | Max. residual current per module | 2A |
| Nominal operating voltage DC | 24V | Electrical isolation between channel and internal bus | Yes, when using an additional supply for the pneumatic valves |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | Degree of protection | IP65 |
| Ambient temperature | -5°C 50°C | Product weight | 1542g |
| Electrical actuation | Fieldbus | Electrical connection | Via CPX |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Cover material | PA | Seals material | NBR |
| Material of screws | Steel | Manufacturer ID | 8152437 |
Specifications may be subject to change without notice
