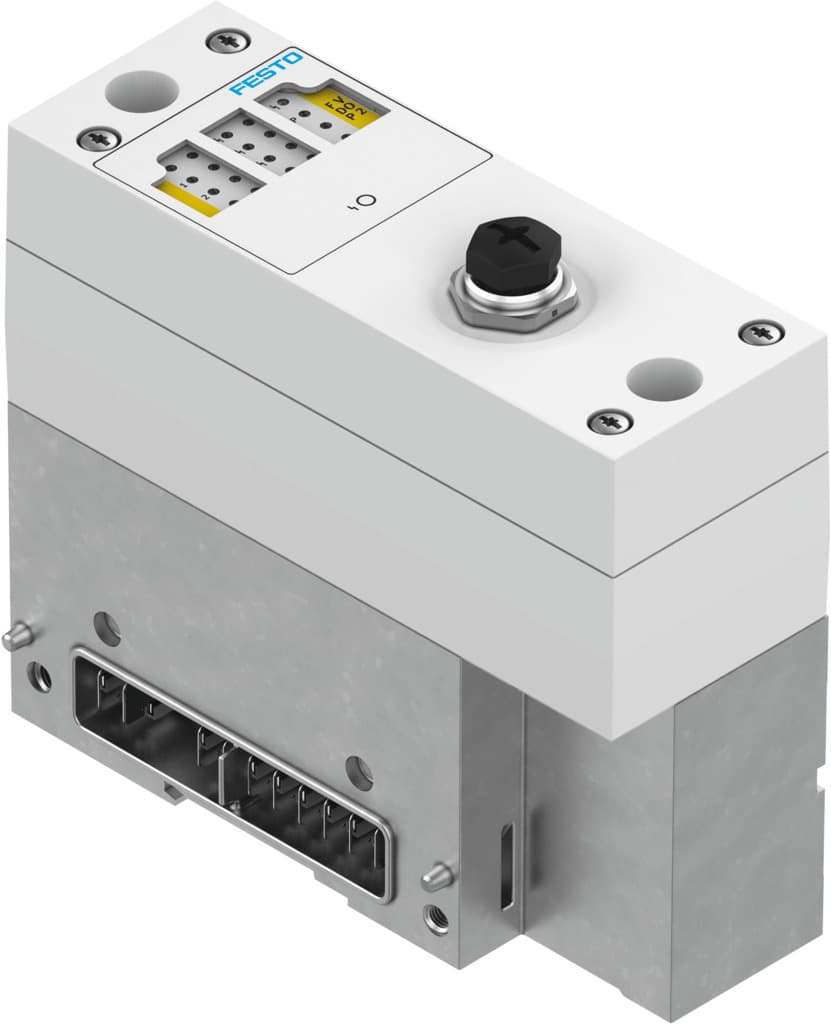

vaba-s6-1-x2-f2-cb
Product ID:16216
Updated: 2026/4/3
Key Features
- 1Withstands severity level 2 tests per FN 942017-4 and EN 60068-2-6. 2、Detects wire breaks, short circuits, and undervoltage in valves. 3、Features internal electronic fuse protection per valve output. 4、Supports up to 12 bistable or 24 monostable valve positions. 5、Meets EU EMC and RoHS directives for compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Valve manifold interface | Type 44, VTSA-F-CB | Diagnostics | Wire break per valve coil Short circuit of pneumatic valves Undervoltage of pneumatic valves |
| Max. no. of valve positions | 12 for bistable pneumatic valves 24 for monostable pneumatic valves | LED indicators | 1 group diagnostics |
| Parameterization | Fail-safe modes per channel Forcing per channel Idle mode per channel Module monitoring | Fuse protection (short circuit) | Internal electronic fuse per pneumatic valve output |
| DC operating voltage range | 21.6V 26.4V | Intrinsic current consumption at nominal operating voltage | Typ. 110 mA for electronics with CPX-FVDA-P2 Typ. 25 mA for pneumatic valves without CPX-FVDA-P2 Typ. 45 mA for electronics without CPX-FVDA-P2 Typ. 90 mA for pneumatic valves with CPX-FVDA-P2 |
| Max. power supply per channel | 0.2?A | Max. residual current per module | 4.5A |
| Nominal operating voltage DC | 24V | Electrical isolation between channel and internal bus | Yes, when using an additional supply for the pneumatic valves |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | Degree of protection | IP65 |
| Ambient temperature | -5°C 50°C | Product weight | 754g |
| Electrical actuation | Fieldbus | Electrical connection output, function | Safe digital output |
| Electrical connection output, connection type | Socket | Electrical connection output, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical output connection, number of pins/wires | 5 | Electrical connection | Via CPX |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Cover material | PA | Seals material | NBR |
| Material of screws | Steel | Manufacturer ID | 8068241 |
Specifications may be subject to change without notice
