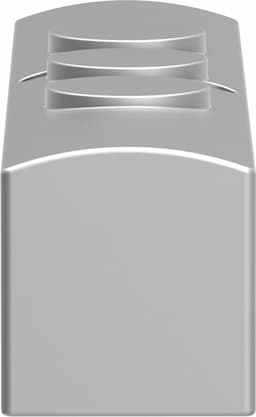

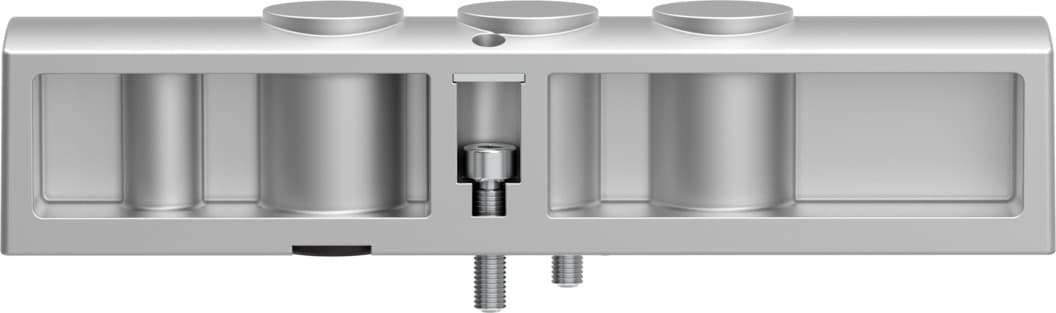

vabb-b10-20-e
Product ID:14492
Updated: 2026/4/3
Key Features
- 1Constructed from high-quality die-cast aluminum for durability and corrosion resistance. 2、Achieve moderate corrosion resistance meeting CRC 2 standards. 3、Ensure environmental safety with full RoHS compliance. 4、Simplify installation using the convenient through-hole mounting design. 5、Apply a maximum tightening torque of 1.4 Nm for precise valve manifold applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque | 1.4Nm | Product weight | 78g |
| Type of mounting | With through-hole | Note on materials | RoHS-compliant |
| Cover plate material | Die-cast aluminum | Manufacturer ID | 576410 |
Specifications may be subject to change without notice
