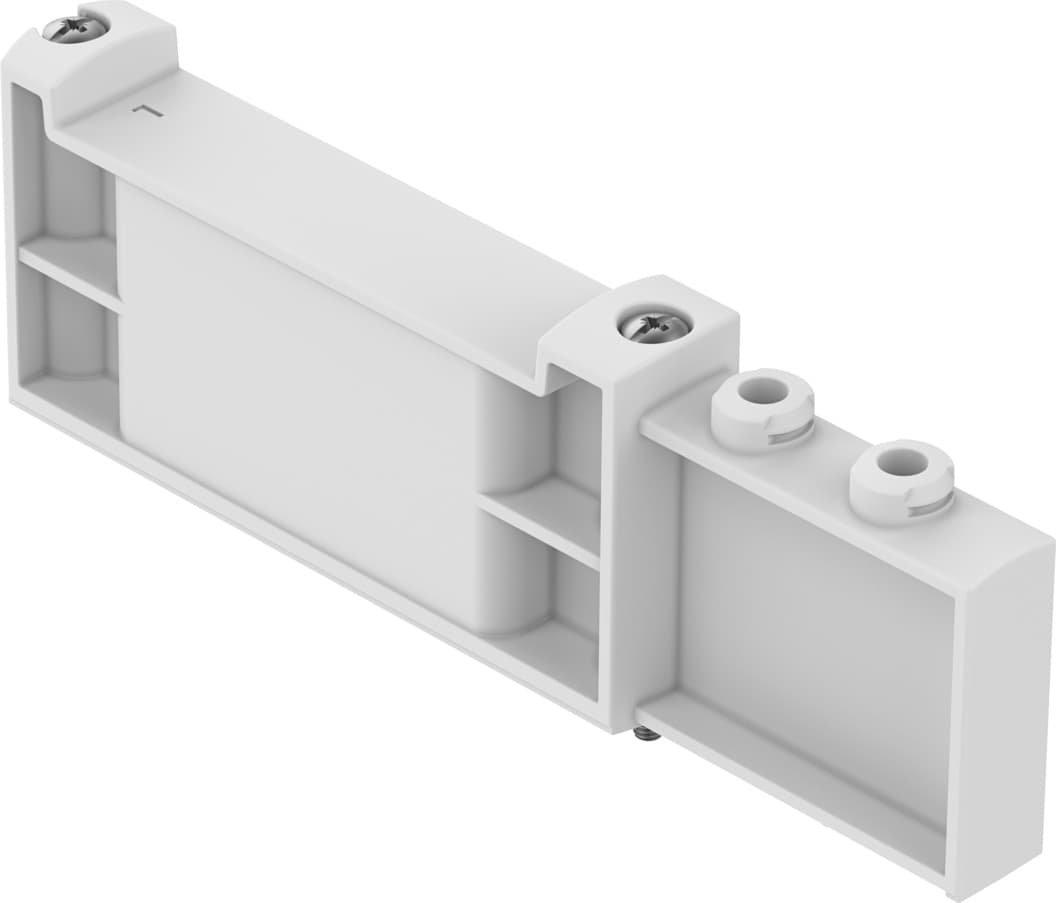

vabb-l1-14
Product ID:13548
Updated: 2026/4/4
Key Features
- 1Effectively seal unused pneumatic connecting points with included hardware. 2、Provide moderate corrosion resistance (CRC 2) to extend service life. 3、Construct from durable wrought aluminum alloy for reliable performance. 4、Simplify installation with pre-included screws and sealing elements. 5、Ensure system compatibility by meeting LABS and VDMA standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 16mm | Operating pressure | -0.9bar 10bar |
| Certification | RCM compliance mark c UL us - Recognized (OL) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 23.9g |
| Note on materials | RoHS-compliant | Cover plate material | Wrought aluminum alloy |
| Manufacturer ID | 569989 |
Specifications may be subject to change without notice
