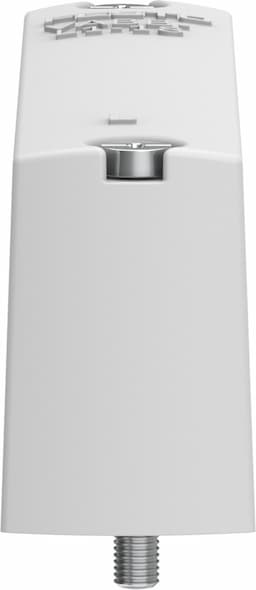

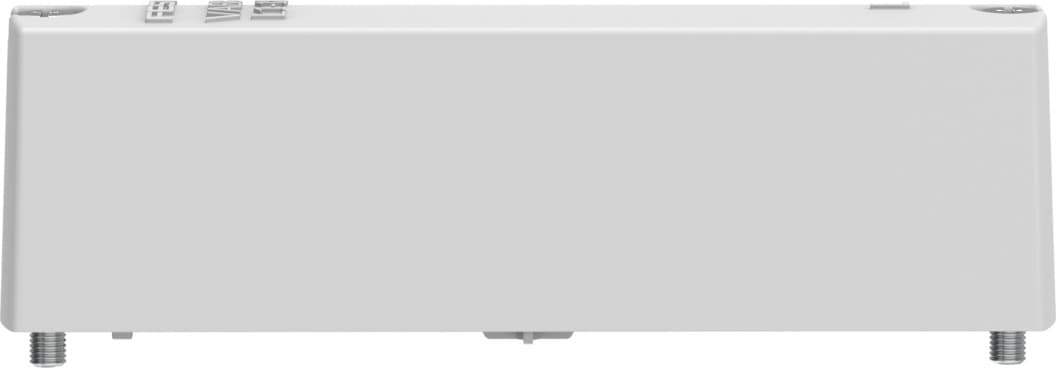

vabb-l1-18
Product ID:14162
Updated: 2026/4/4
Key Features
- 1Comply with EU RoHS directive for safe operation. 2、Ensure precise valve mounting with 19 mm grid dimension. 3、Achieve CRC=2 classification for moderate corrosion resistance. 4、Operate reliably across -0.9 to 10 bar pressure range. 5、Install easily with a 1.18 Nm max tightening torque.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 19mm | Operating pressure | -0.9bar 10bar |
| Certification | RCM compliance mark c UL us - Recognized (OL) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Max. tightening torque for valve mounting | 1.18Nm |
| Product weight | 50g | Note on materials | RoHS-compliant |
| Cover plate material | Wrought aluminum alloy | Manufacturer ID | 574482 |
Specifications may be subject to change without notice
