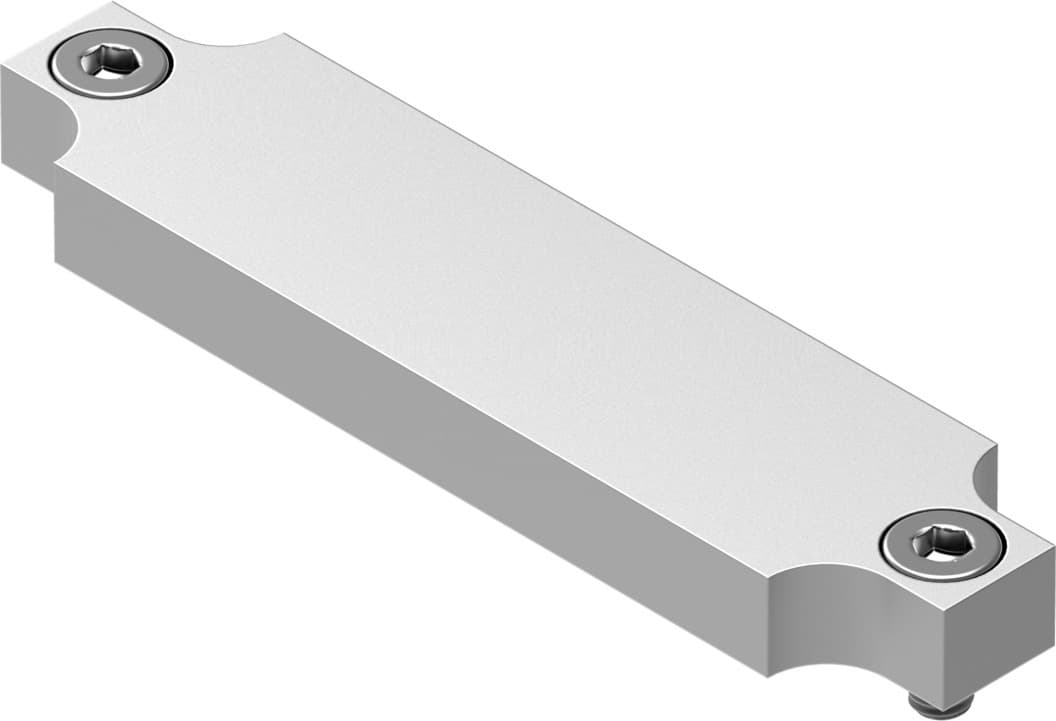

vabb-p6-m
Product ID:8489
Updated: 2026/7/4
Key Features
- 1Feature a 15 mm grid dimension for versatile valve configurations.
- 2Provide CRC2 corrosion resistance for durability in harsh environments.
- 3Withstand valve mounting with a 0.6 Nm maximum tightening torque.
- 4Construct from wrought aluminum alloy for RoHS compliance.
- 5Meet LABS and VDMA24364-B2-L standards for high technical specifications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 15mm | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Max. tightening torque for valve mounting | 0.6Nm |
| Product weight | 15g | Note on materials | RoHS-compliant |
| Cover plate material | Wrought aluminum alloy | Manufacturer ID | 4054657 |
Specifications may be subject to change without notice
