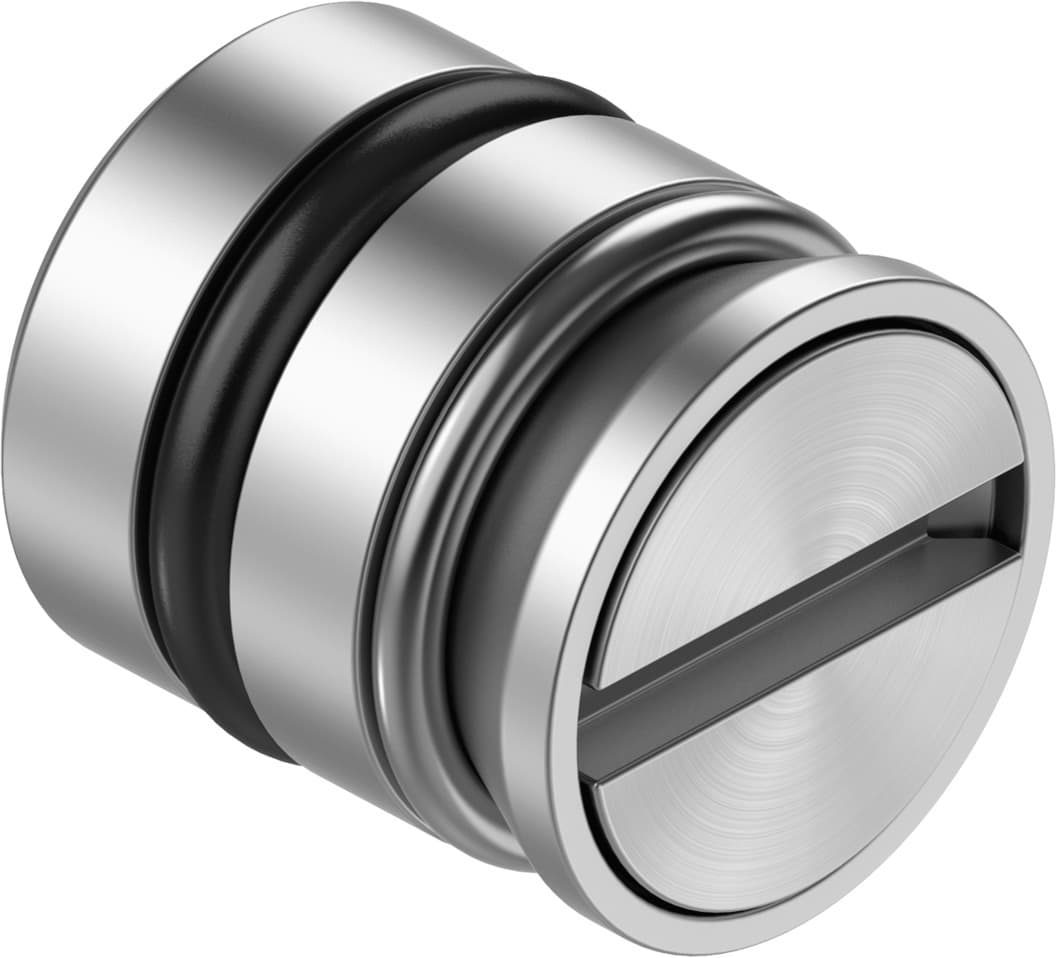

vabd-10-b-f1a
Product ID:488
Updated: 2026/4/3
Key Features
- 1Achieve 0 corrosion class for harsh environments. 2、Meet ISO Class 6 cleanroom standards for sensitive production. 3、Utilize RoHS-compliant materials like NBR seals and stainless steel. 4、Comply with LABS (PWIS) and VDMA24364 zone III standards. 5、Integrate a compact 10-gram VABD-10-B-F1A separator easily.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants | Metals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 6 according to ISO 14644-1 | Product weight | 10g |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Material of screws | Steel, chemically nickel-plated | Circlip material | High-alloy stainless steel |
| Plug material | Aluminum | Manufacturer ID | 8145480 |
Specifications may be subject to change without notice
