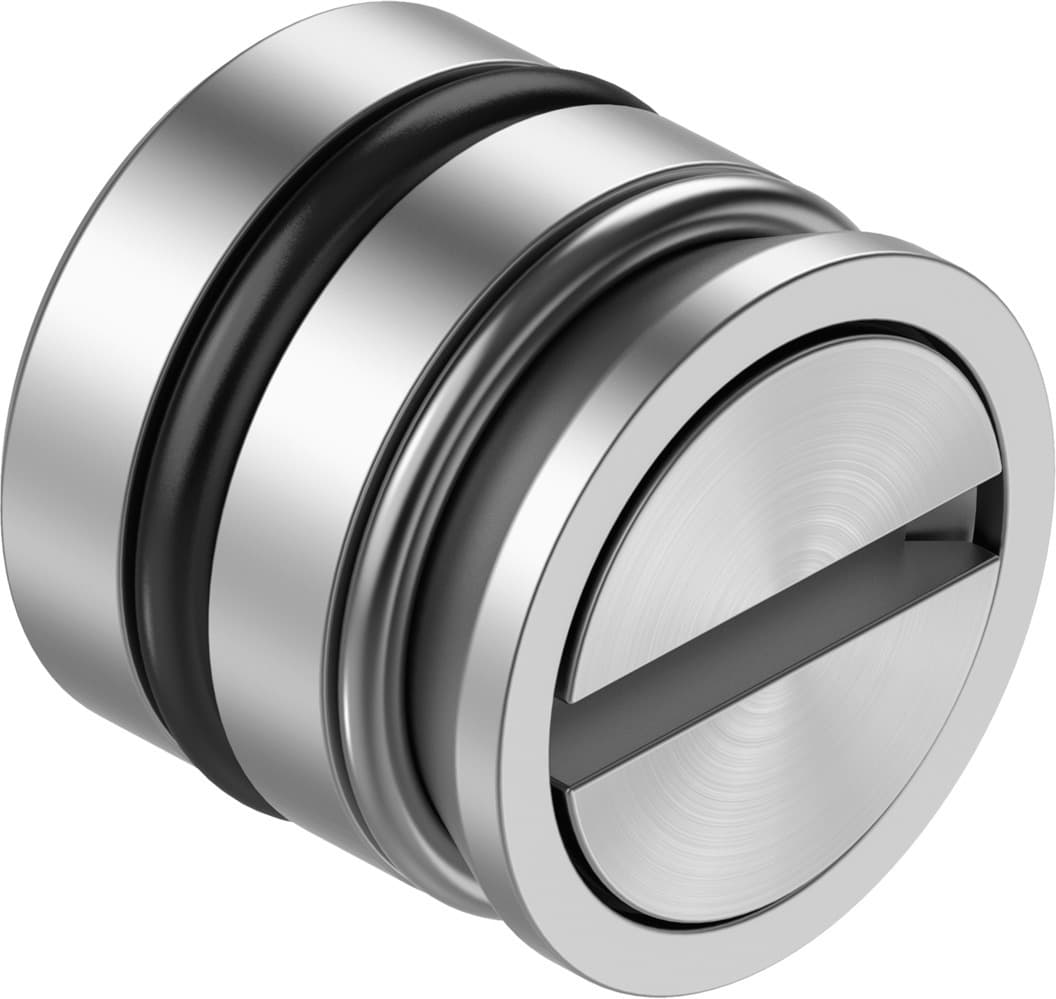

vabd-12-b-f1a
Product ID:487
Updated: 2026/4/3
Key Features
- 1Offer excellent CRC0 corrosion resistance for harsh environments. 2、Maintain ISO class 6 cleanliness for high-purity applications. 3、Weigh only 13 grams for lightweight system integration. 4、Construct with NBR rubber and plated steel for durability. 5、Ensure RoHS compliance to meet global environmental standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants | Metals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 6 according to ISO 14644-1 | Product weight | 13g |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Material of screws | Steel, chemically nickel-plated | Circlip material | High-alloy stainless steel |
| Plug material | Aluminum | Manufacturer ID | 8145481 |
Specifications may be subject to change without notice
