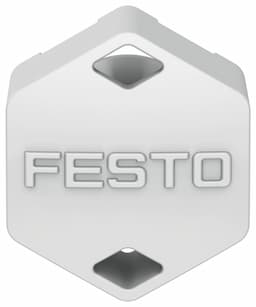

vabd-d3-l-gn14
Product ID:286
Updated: 2026/7/4
Key Features
- 1Protect ATEX Zone 1 and 2 hazardous areas reliably.
- 2Operate across a versatile 0 to 10 bar pressure range.
- 3Ensure quality with ISO 8573-1:2010 and LABS compliance.
- 4Withstand harsh conditions from -50°C to 60°C with IP54.
- 5Install easily via screw-in male thread mounting.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Symbol | 00991455 |
| Operating pressure | 0bar 10bar | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP54 | Ambient temperature | -50°C 60°C |
| Product weight | 3.8g | Type of mounting | Screw-in With external thread |
| Note on materials | RoHS-compliant | Vent screw material | HP PA 12 |
| Manufacturer ID | 8177960 |
Specifications may be subject to change without notice
