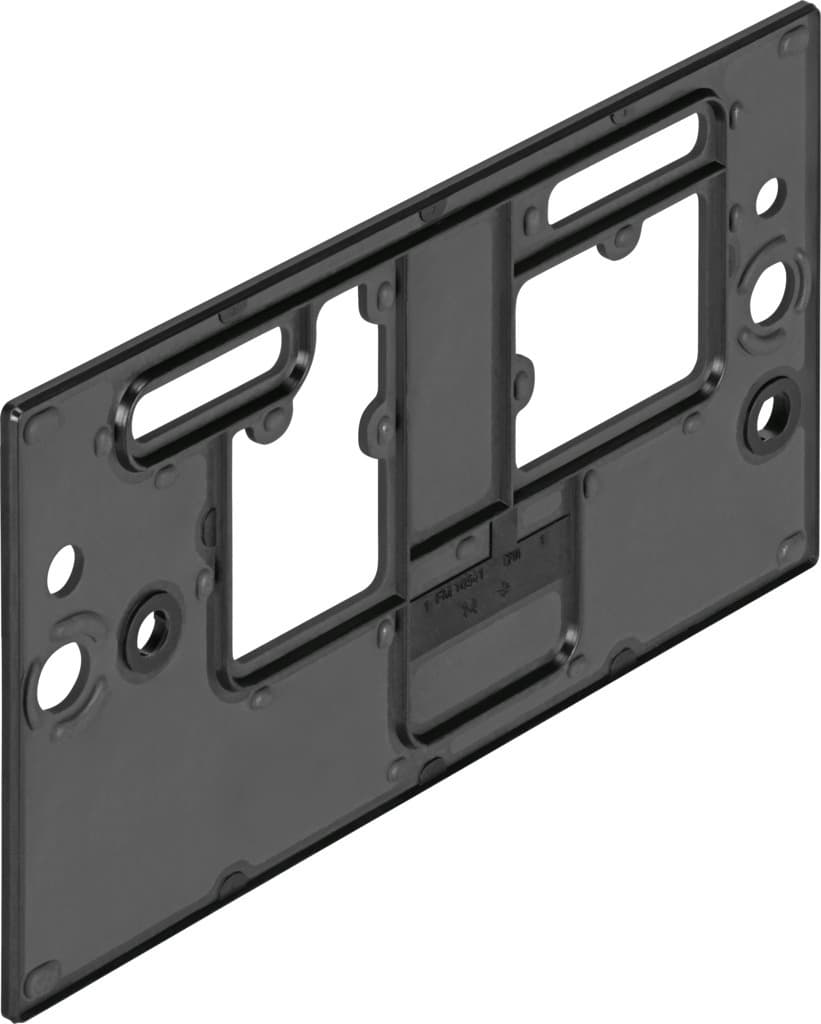

vabd-s1-1-p1-c
Product ID:15361
Updated: 2026/4/3
Key Features
- 1Ensure precise duct separation via throttle plate per ISO 5599-1 standards. 2、Operate effectively within a wide 0 to 10 bar pressure range. 3、Utilize in demanding vacuum systems for reliable performance. 4、Meet EU safety and environmental standards with CE and RoHS compliance. 5、Benefit from durable steel and NBR construction for long-lasting use.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Exhaust air function | Via throttle plate | Based on norm | ISO 5599-1 |
| Operating pressure | 0bar 10bar | Suitability for vacuum | yes |
| CE marking (see declaration of conformity) | As per EU low voltage directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
| Temperature of medium | -10°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C 50°C | Product weight | 60g |
| Note on materials | RoHS-compliant | Separator plate material | Steel NBR |
| Manufacturer ID | 8029438 |
Specifications may be subject to change without notice
