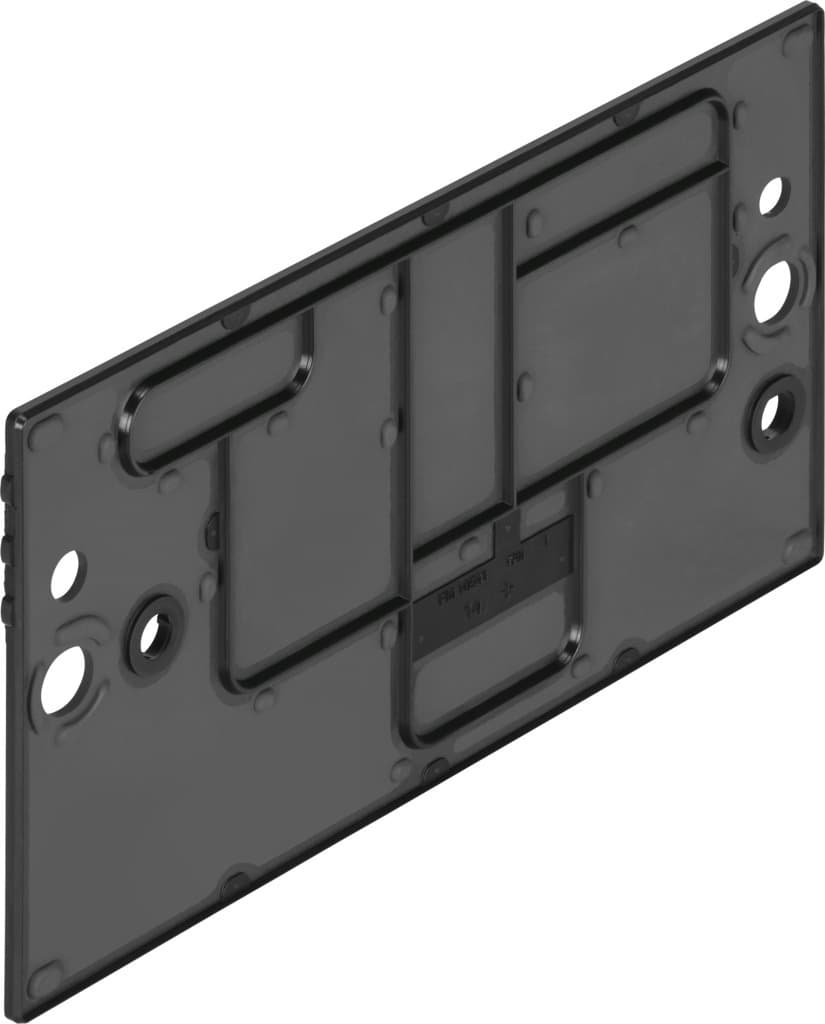

vabd-s1-1-p6-c
Product ID:15364
Updated: 2026/4/3
Key Features
- 1Ensure precise exhaust air control via an integrated throttle plate. 2、Meet ISO 5599-1 standards for guaranteed pressure and function. 3、Handle vacuum applications effectively with robust design. 4、Comply with EU safety regulations via CE marking. 5、Utilize RoHS-compliant, environmentally friendly materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Exhaust air function | Via throttle plate | Based on norm | ISO 5599-1 |
| Operating pressure | 0bar 10bar | Suitability for vacuum | yes |
| CE marking (see declaration of conformity) | As per EU low voltage directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
| Temperature of medium | -10°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C 50°C | Product weight | 75g |
| Note on materials | RoHS-compliant | Separator plate material | Steel NBR |
| Manufacturer ID | 8029441 |
Specifications may be subject to change without notice
