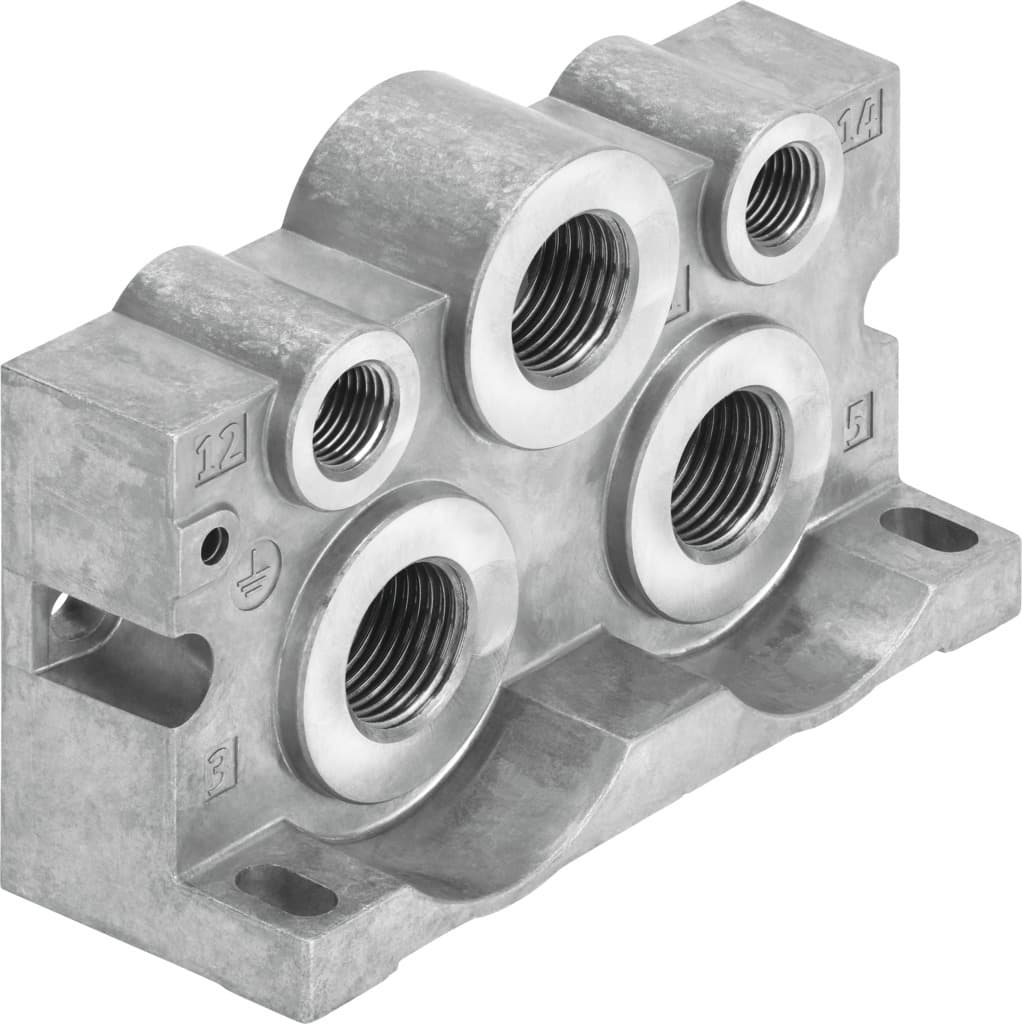

vabe-s1-1rz-n12
Product ID:15469
Updated: 2026/4/3
Key Features
- 1Conform to RoHS with a CRC=0 corrosion resistance rating. 2、Support high flow rates up to 1,400 l/min in a metal housing. 3、Modify and expand your system easily with modular design. 4、Permit flexible air supply using variable pressure zone plates. 5、Mount directly via screws or DIN H-rail for secure installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 44mm | Exhaust air function | Via throttle plate |
| Based on norm | ISO 5599-1 | Operating pressure | 0bar 10bar |
| Suitability for vacuum | yes | CE marking (see declaration of conformity) | As per EU low voltage directive |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | Temperature of medium | -10°C 50°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 50°C |
| Product weight | 410g | Type of mounting | with through-hole for M6 screw |
| Pilot air port 12/14 | 1/4 NPT | Pneumatic connection 1 | 1/2 NPT |
| Pneumatic connection 3 | 1/2 NPT | Pneumatic connection 5 | 1/2 NPT |
| Note on materials | RoHS-compliant | End plate material | Die-cast aluminum |
| Manufacturer ID | 8032669 |
Specifications may be subject to change without notice
