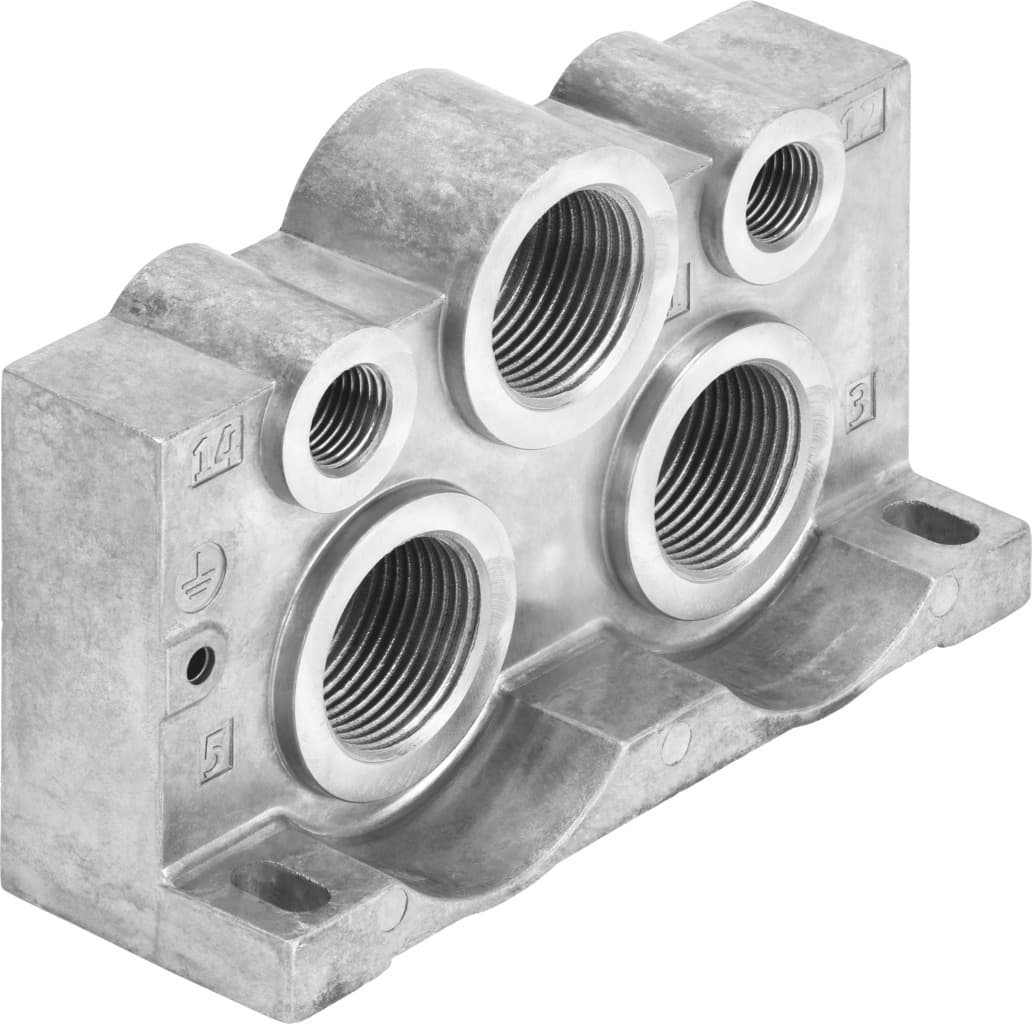

vabe-s1-2l-n34
Product ID:15467
Updated: 2026/7/4
Key Features
- 1Ensure precise pneumatic control and efficient operations.
- 2Comply with ISO 5599-1 and ISO 8573-1:2010 standards.
- 3Construct robustly from die-cast aluminum for corrosion resistance.
- 4Mount flexibly via through-hole for M6 screw installation.
- 5Operate reliably in vacuum and diverse industrial applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 44mm | Exhaust air function | Via throttle plate |
| Based on norm | ISO 5599-1 | Operating pressure | 0bar 10bar |
| Suitability for vacuum | yes | CE marking (see declaration of conformity) | As per EU low voltage directive |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | Temperature of medium | -10°C 50°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 50°C |
| Product weight | 360g | Type of mounting | with through-hole for M6 screw |
| Pneumatic connection 1 | 3/4 NPT | Pneumatic connection 3 | 3/4 NPT |
| Pneumatic connection 5 | 3/4 NPT | Note on materials | RoHS-compliant |
| End plate material | Die-cast aluminum | Manufacturer ID | 8032667 |
Specifications may be subject to change without notice
