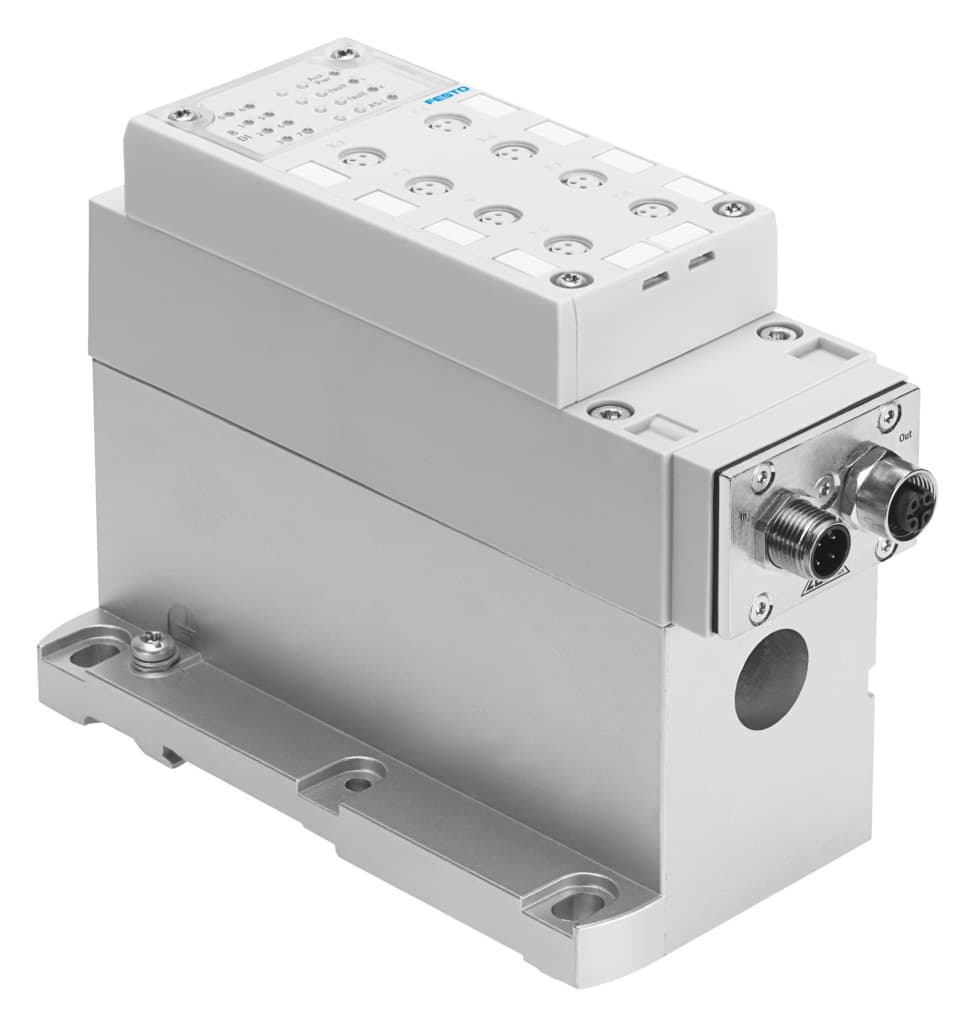

vabe-s6-1lf-c-a8-e
Product ID:11641
Updated: 2026/7/4
Key Features
- 1Integrate a field bus interface with socket and plug connector.
- 2Control a maximum of 8 valve coils for complex automation.
- 3Support up to 8 inputs and 8 outputs for versatile applications.
- 4Ensure durability with CRC 0 corrosion resistance and IP65.
- 5Operate reliably with 24V DC nominal voltage and +/-10% fluctuation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Fieldbus interface | Socket, M12x1, 4-pin Plug, M12x1, 4-pin |
| Max. no. of solenoid coils | 8 | Number of slaves per device | 2 |
| Max. no. of outputs | 8 | Max. number of inputs | 8 |
| Nominal operating voltage DC | 24V | Permissible voltage fluctuations | +/- 10 % |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
| Relative air humidity | 0 - 90 % | Degree of protection | IP65 |
| Ambient temperature | -5°C 50°C | Product weight | 850g |
| Electrical actuation | Fieldbus | Electrical connection | Via CPX |
| Addressing range | 1 ... 31 (0) Setting using AS-Interface addressing device | Galvanic isolation fieldbus interface | Optocoupler |
| Note on materials | RoHS-compliant | Seals material | NBR PUR |
| Housing material | Die-cast aluminum PA | Manufacturer ID | 549043 |
Specifications may be subject to change without notice
