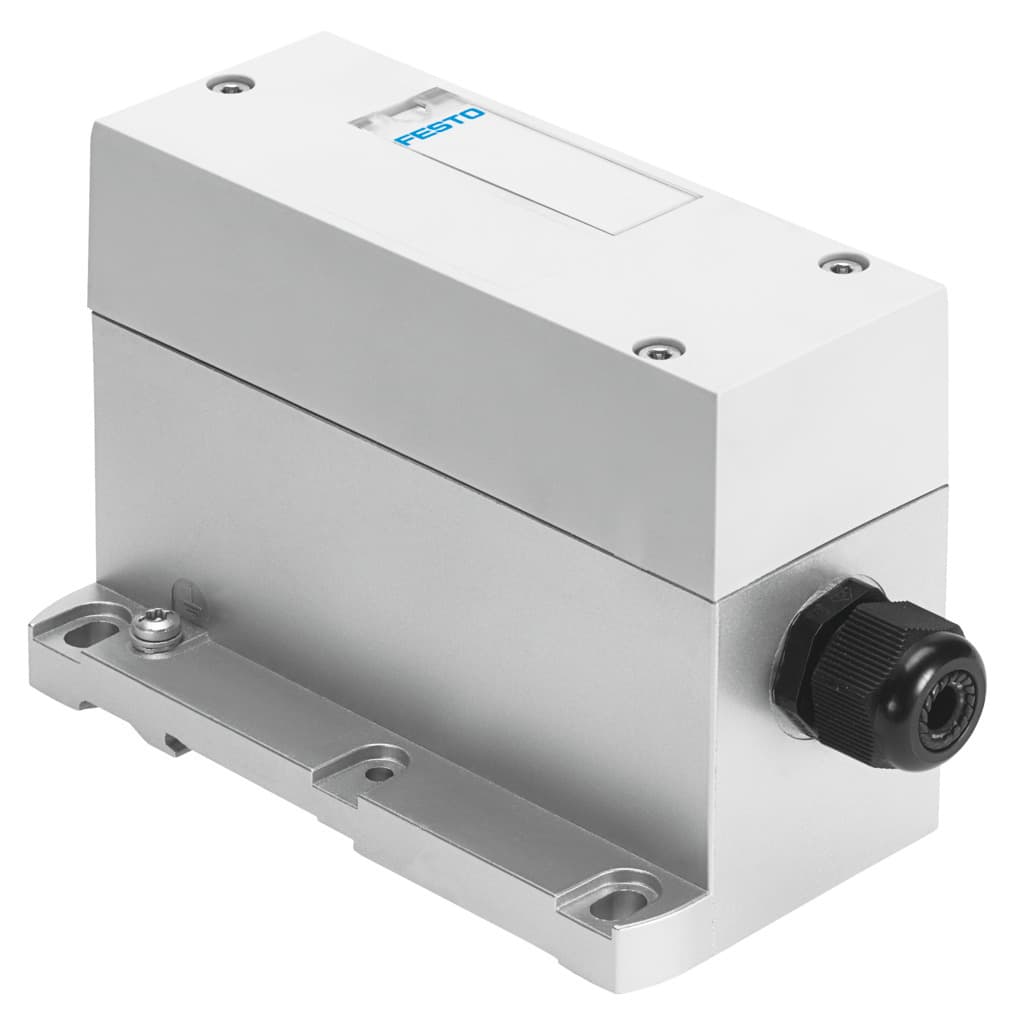

vabe-s6-1lf-c-m1-c36m
Product ID:10901
Updated: 2026/4/3
Key Features
- 1Control up to 16 bistable or 32 monostable valves for versatile pneumatic applications. 2、Operate reliably at 24V DC with 1.5 kV surge strength in demanding environments. 3、Ensure durability with IP65, NEMA 4 protection and CRC 0 corrosion resistance. 4、Integrate seamlessly with Festo VTSA and VTSA-F valve terminals. 5、Deploy a compact, 545g node across a -5°C to 50°C temperature range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61984 | Mounting position | Any |
| Max. no. of valve positions | 16 for bistable pneumatic valves 32 for monostable pneumatic valves | Max. residual current | 6A |
| Nominal operating voltage DC | 24V | Surge resistance | 1.5kV |
| Current rating at 40° C | 1A | Contamination level | 3 |
| Permissible voltage fluctuations | +/- 10 % | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 545g |
| Electrical actuation | Multi-pin | Electrical connection | Socket/terminal strip |
| Cover material | PA | Housing material | Die-cast aluminum |
| Manufacturer ID | 543412 |
Specifications may be subject to change without notice
