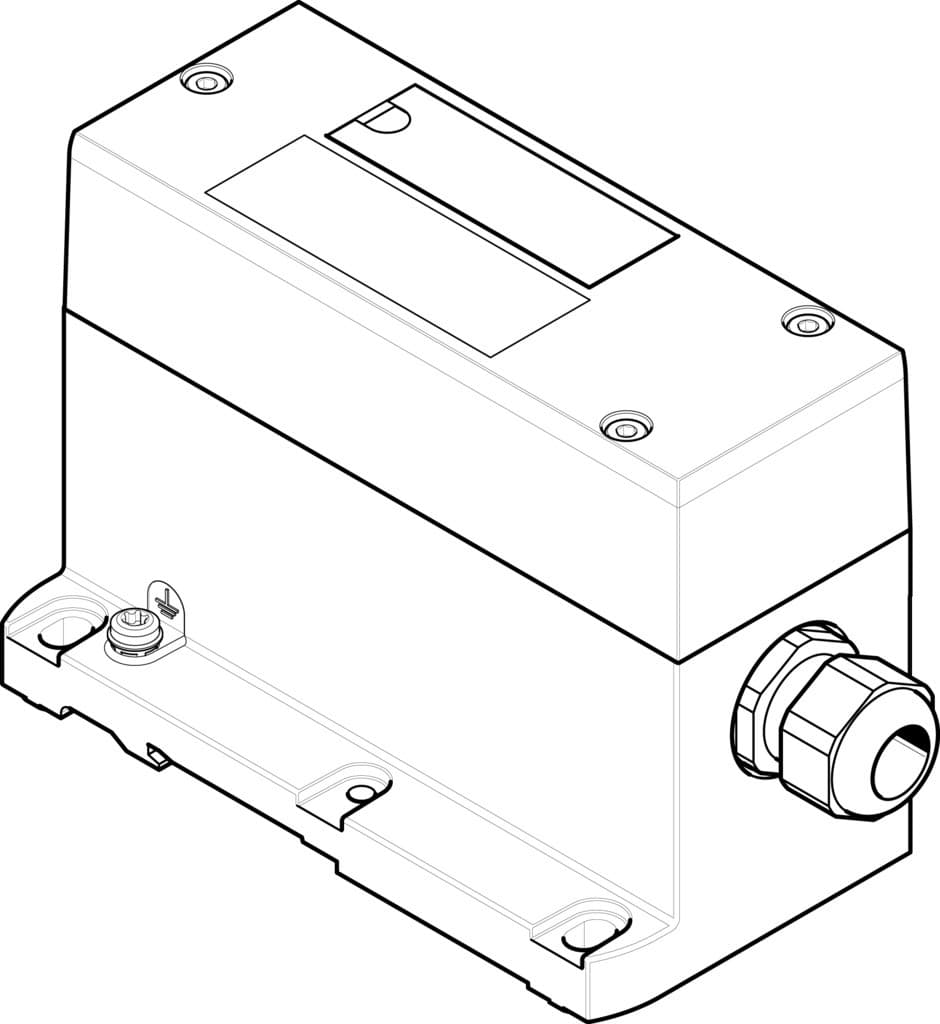

vabe-s6-1lf-c-m1-c36n
Product ID:10902
Updated: 2026/7/4
Key Features
- 1Comply with EN 61984 for guaranteed reliability and safety.
- 2Choose optional mounting positions for flexible system integration.
- 3Control up to 32 monostable or 16 bistable valve positions.
- 4Operate reliably with 24V DC and a 6A maximum current.
- 5Withstand harsh conditions with IP65/NEMA 4 protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61984 | Mounting position | Any |
| Max. no. of valve positions | 16 for bistable pneumatic valves 32 for monostable pneumatic valves | Max. residual current | 6A |
| Nominal operating voltage DC | 24V | Surge resistance | 1.5kV |
| Current rating at 40° C | 1A | Contamination level | 3 |
| Permissible voltage fluctuations | +/- 10 % | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 540g |
| Electrical actuation | Multi-pin | Electrical connection | Socket/terminal strip |
| Cover material | PA | Housing material | Die-cast aluminum |
| Manufacturer ID | 543413 |
Specifications may be subject to change without notice
