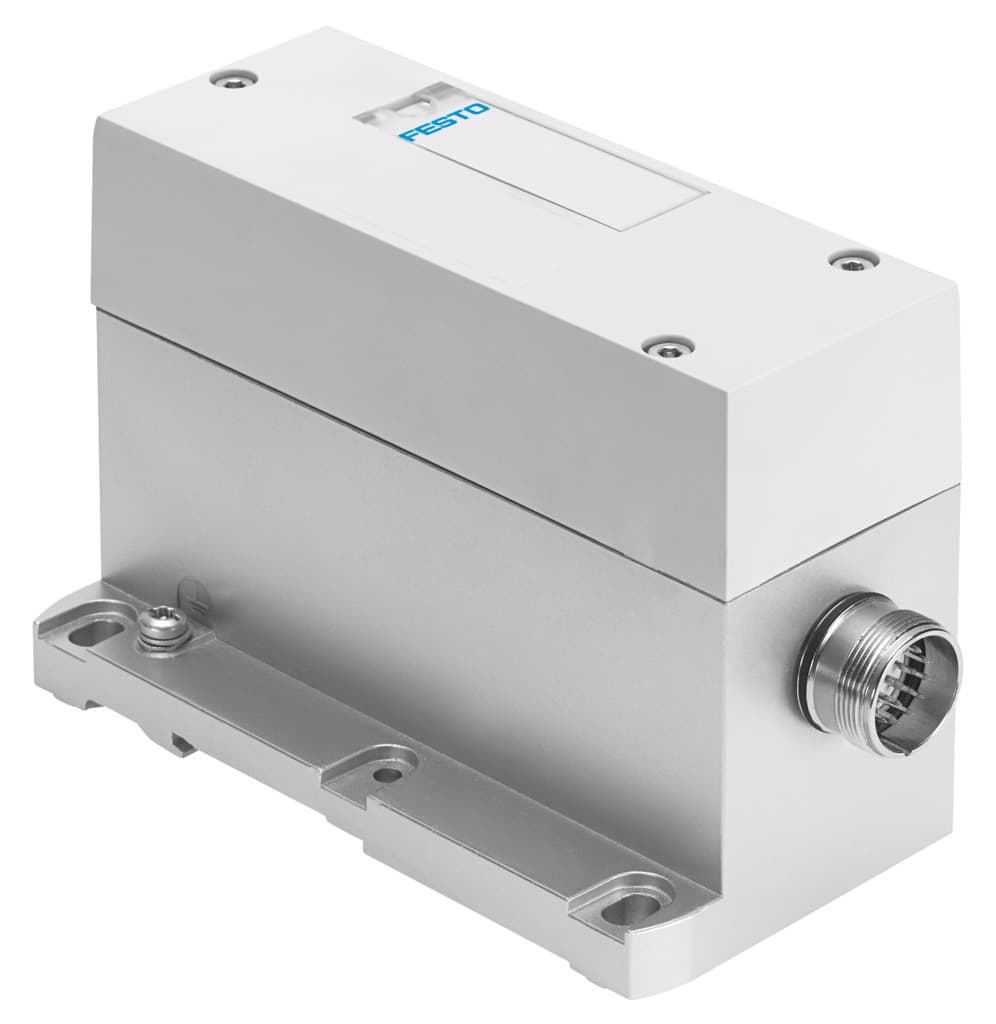

vabe-s6-1lf-c-m1-r19
Product ID:10904
Updated: 2026/7/4
Key Features
- 1Control up to 16 monostable and 8 bistable valve positions flexibly.
- 2Ensure reliable operation with 24V DC and +/-10% voltage tolerance.
- 3Protect against harsh conditions with IP65 and die-cast aluminum housing.
- 4Integrate seamlessly with VTSA and VTSA-F valve terminals.
- 5Simplify installation with clear technical data for qualified personnel.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Max. no. of valve positions | 16 for monostable pneumatic valves 8 for bistable pneumatic valves |
| Nominal operating voltage DC | 24V | Permissible voltage fluctuations | +/- 10 % |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
| Product weight | 539g | Electrical actuation | Multi-pin |
| Electrical connection | 19-pin Plug as per CNOMO E03.62.530.N | Cover material | PA |
| Housing material | Die-cast aluminum | Manufacturer ID | 543415 |
Specifications may be subject to change without notice
