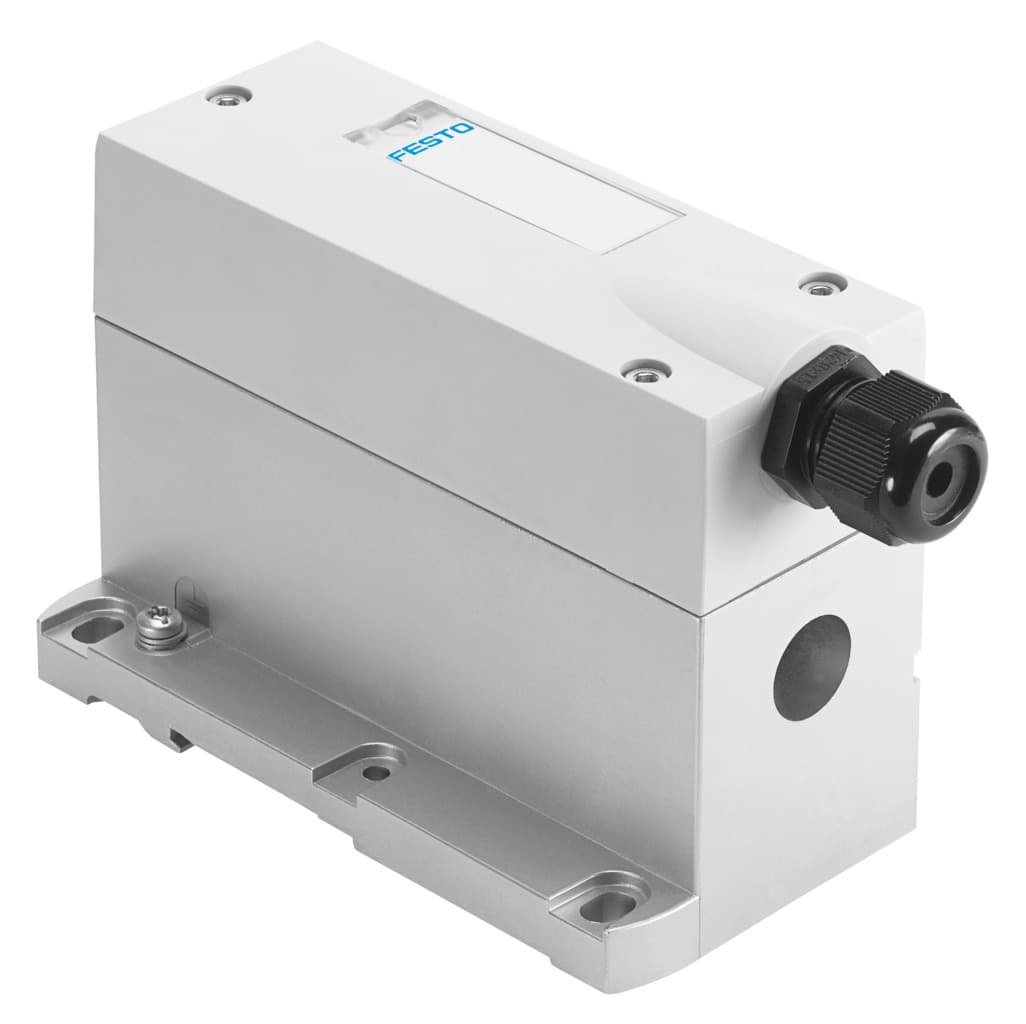

vabe-s6-1lt-c-m1-s37
Product ID:10903
Updated: 2026/4/3
Key Features
- 1Control up to 16 bistable or 32 monostable pneumatic valves. 2、Operate reliably at 24V DC with ±10% voltage tolerance. 3、Withstand harsh conditions with IP65/NEMA 4 protection. 4、Ensure durability with aluminum and PA construction. 5、Guarantee safety using required PELV circuits.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Max. no. of valve positions | 16 for bistable pneumatic valves 32 for monostable pneumatic valves |
| Nominal operating voltage DC | 24V | Permissible voltage fluctuations | +/- 10 % |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
| Product weight | 459g | Electrical actuation | Multi-pin |
| Electrical connection | Cable with plug | Cover material | PA |
| Housing material | Die-cast aluminum | Manufacturer ID | 543414 |
Specifications may be subject to change without notice
