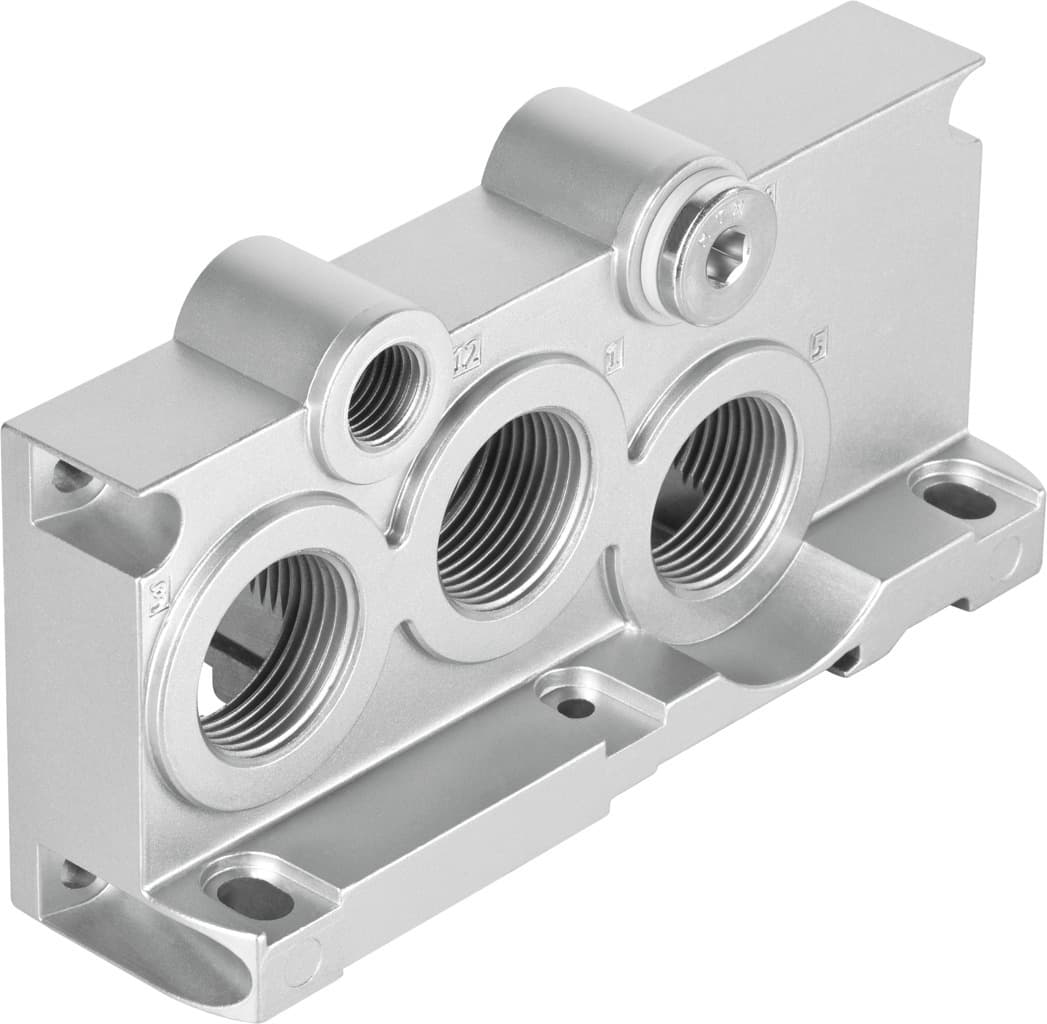

vabe-s6-2r-n34
Product ID:12983
Updated: 2026/4/4
Key Features
- 1Ensure high corrosion resistance with die-cast aluminum (CRC 0). 2、Deliver precise pneumatic connections via 1/4 and 3/4 NPT ports. 3、Meet ISO 5599-2 standards for assembly and valve type. 4、Integrate a lightweight 336-gram design easily. 5、Conform to RoHS directives for environmental safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | ISO 5599-2 | Mounting position | Any |
| Valve terminal type | 44 | Operating pressure | -0.9bar 10bar |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 336g | Pilot air port 12 | 1/4 NPT |
| Pneumatic connection 1 | 3/4 NPT | Pneumatic connection 3 | 3/4 NPT |
| Pneumatic connection 5 | 3/4 NPT | Note on materials | RoHS-compliant |
| End plate material | Die-cast aluminum | Manufacturer ID | 560838 |
Specifications may be subject to change without notice
